    P2.5 Indoor Flexible LED Panels 320*160mm Curved Soft LED Dispaly Screen

    Ask Lasest Price
    Brand Name : MANNLED
    Model Number : P2.5
    Certification : CE ROHS
    Price : USD$100-1000
    Payment Terms : T/T
    Supply Ability : 10000pcs/week
    Delivery Time : 10days
    • Product Details
    • Company Profile

    P2.5 Indoor Flexible LED Panels 320*160mm Curved Soft LED Dispaly Screen

    P2.5 Indoor Flexible Led Panels 320*160mm Curved Sorf Led Dispaly Screen


    Quick detail of flexible led panels:

    1, Pixel Pitch: 2.5m. 3mm, 4mm
    2, SMD LEDs, Wide viewing angle: 160°/ 140°.
    3, Digital Process: 16bits.
    4, Standard cabinet size: Customized, cabinet weight: 20kg/Sqm.
    5, Grey Level: 16 Bit

    6, Material: iron cabinet

    7, Refresh Rate: 1920Hz

    8, IP Rating: IP65

    9,Certificate:CE, RoHS,FCC

    10,Viewing Distance:≥2.5m


    Description of flexible led panels:

    Flexible led panels pixel include 2mm, 2.5mm, 3mm, 4mm, 5mm, within these pixels, 2.5mm, 3mm, 4mm are the most hot-selling and highest cost-effective series. You can use it on car for advertising or fixed in some place as billboard or on building.


    Specification:

    Module parameters
    Technical parametersUNITparameters values
    Pixel pitchMM5
    Panel sizeMML320*H160*T14
    Physical densitydot/M240000
    Pixel configurationR/G/B1,1,1
    Driving method1/16 scan
    LED EncapsulationSMD2121
    Display resolutionDOTS64X32=2048
    Module weightKG0.56
    Module portHUB75
    Module working voltageVDC5
    Module consumptionW≤16
    Every square metre modulePCS19
    Maximum powerW/ M2<350
    Equilibrium brightnessCD/ M2≥650
    Working environment temperature0C-10~60
    Working environment humidityRH10%~70%
    Display working voltageVACAC46~54HZ,220V±15%/110V±15%
    Best viewing distance≥5M
    Lamp failure frequency<0.0001
    IP ratingThe back IP40,The front IP50
    Control methodSynchronize or asynchronization control

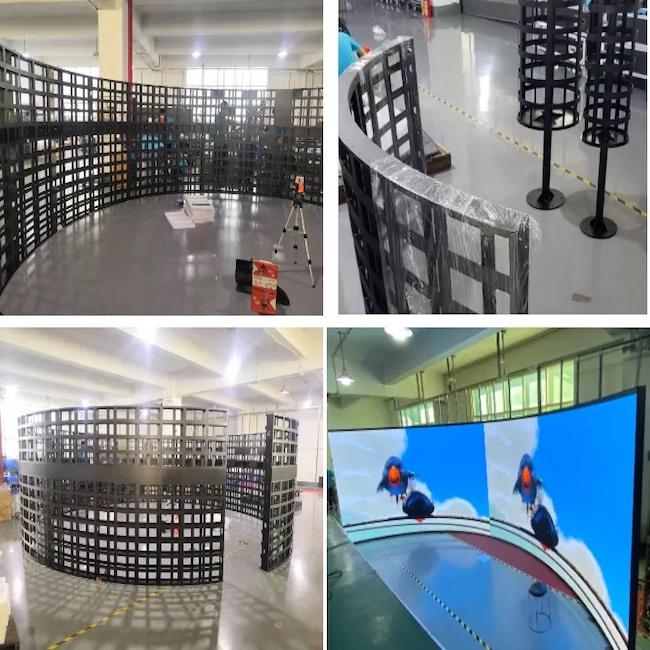

    Product Image:


    Feature of flexible led panels:


    ● Large Radian and High Flexibility

    ● Ultra-thin And Ultra-light

    ● Simple And Quick Installation

    ● Magnetic Front Service Design

    ● Higher Contrast Ratio And Definition

    ● Customized Shape, Wide Application


    Application of flexible led panels:

    · Business organizations

    Supermarket, large-scale shopping malls, star -rated hotel, travel agencies.

    · Financial organizations

    Bank, insurance companies, post offices, hospital, schools

    · Public place

    Subway, airports, stations, parks, exhibition halls, stadiums, museums, commercial buildings, meeting room

    · Entertainments

    Movie theaters, clubs, stages

    Suit for advertisement, stadium, exhibition, TV-Show, mansion, video wall, shopping mall, banks, schools, bus station, airport, gym, market, factories, monitoring centers, hospital, bar etc.


    Our Services:

    1. Comprehensive solution delivery of series products.

    2. High quality products which allow they to scream.

    3. Custom service.

    4. Above one year free warranty, and support renewals extended.

    5. Free installation guidance and technical support.

    6. Cover more than 100 countries and regions in the world with products and technical support.


    FAQ:

    1. How long could i receive the inquiry reply ?

    A: Thanks for your interest in our full color led display screen, we will reply to you within 24 hours.


    2. How long does the warranty of led display ?

    A: Different product offer different time frame warranty, but all product here we offer 1 year at least warranty


    3. How is the after sales service ?

    A: We have a professional team which is in all around the world , also a service hot-line dealing with your complains and feedback.We also offer 24-hour online service to help you solving problems


    4. How long will it take to deliver goods ?

    A: We will start preparing goods when we get your bank receipt. The package will be shipped out in 1-2 working days after we get your payment.
