Ultra Thin Fixed P2 Tv Display Front Service Indoor Full Color LED
Screen
Quick Details:
Seamless connection;
Signal backup and power backup;
Brightness and chromaticity calibration;
Mixed use of cabinets from different batches;
True color reproduction;
Anti-ghost;
High gray scale (16bit) and high refresh rate (1920Hz);
Lower power consumption with high PFC power supply, the drive
current of each LED lamp only less than 30mA;
Customizable design.
Feature :
1. Totally front service design. Led module, power supply and
receiver card are front maintenance.
2. Cabinet resolution: easy to match 2K/4K.
3. Led type is SMD. Waterproof, anti-collision and dust-proof to
prolong led displays lifespan.
4. Ultra thin design, thickness is less than 90mm.
5. 4K high refresh rate.
Specification:
Model | P1.25 | P1.86 | P2 |
LEDType | SMD1010 | SMD1515 | SMD1515 |
Physical Density (dot/m²) | 640000 | 289050 | 160000 |
Module Size (W ×H ×D) mm | 320x160x17 | 320x160x17 | 320x160x17 |
Module Resolution(W×H) | 256x128 | 172x86 | 128x64 |
Cabinet Size (W ×H ×D) mm | 640x480x74 | 640x480x74 | 640x480x74 |
Cabinet Material | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum |
Scanning Mode | 1/64 | 1/48 | 1/32 |
Cabinet Flatness(mm) | ≤0.10 | ≤0.10 | ≤0.10 |
Grey Scale (Bit) | 14 | 14 | 14 |
Protection Level | IP45 | IP45 | IP45 |
Brightness(cd/㎡) | 500-900cd/㎡ | 500-900cd/㎡ | 500-900cd/㎡ |
ColorTemperature | 3200-9300Kadjustable | 3200-9300Kadjustable | 3200-9300Kadjustable |
Brightness Uniformity | ≥98% | ≥98% | ≥98% |
Horizontal/Vertical ViewAngle | ≥140°/≥120° | ≥140°/≥120° | ≥140°/≥120° |
Contrast Ratio | ≥5000:1 | ≥5000:1 | ≥5000:1 |
Module Input Voltage DC | 5V | 5V | 5V |
Max Refresh Rate | ≥3840Hz | ≥3840Hz | ≥3840Hz |
Input VoltageAC | 110-220V | 110-220V | 110-220V |
Cabinet Max Power Consumption | ≤600W/m2 | ≤580W/m2 | ≤480W/m2 |
Cabinet Aver.PowerConsumption | ≤200W/m2 | ≤180W/m2 | ≤160W/m2 |
Working Temperature | 20℃～+80℃ | 20℃～+80℃ | 20℃～+80℃ |
Working Humidity | 10%～95%RH | 10%～95%RH | 10%～95%RH |
Installation/Service Method | Front installation/Front service | Front installation/Front service | Front installation/Front service |

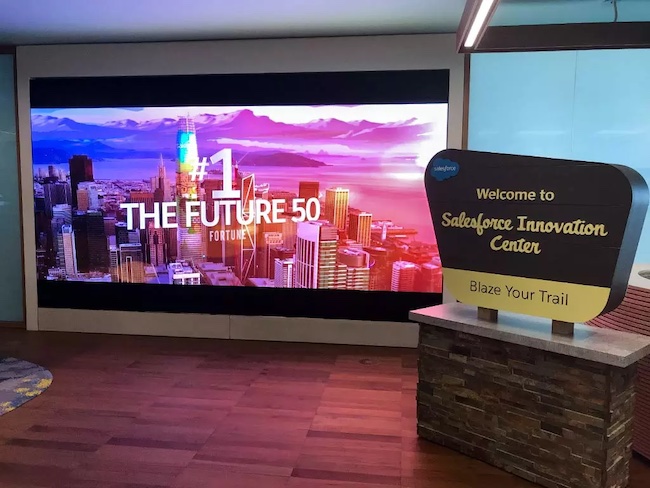

Product Image:
Description:
1. The cabinet is made of Die-Casting aluminium , so can be spliced
with no crack. The thickness of the cabinet is only 80mm. The
assembling can be much quicker and more efficient for no tools is
needed, which help customers to transportand mount without any
difficulties ,reduce the cost of use greatly!
2. The SMD three-in-one technology with high brightness makes the
display has a ultra-wide view and smoother pictures when in use.
3 . Low power consumption and good performance of dissipating heat
make it work normally in the condition of no air conditioning.
4. Which help customers to transport and mount without any
difficulties ,reduce the cost of use greatly!

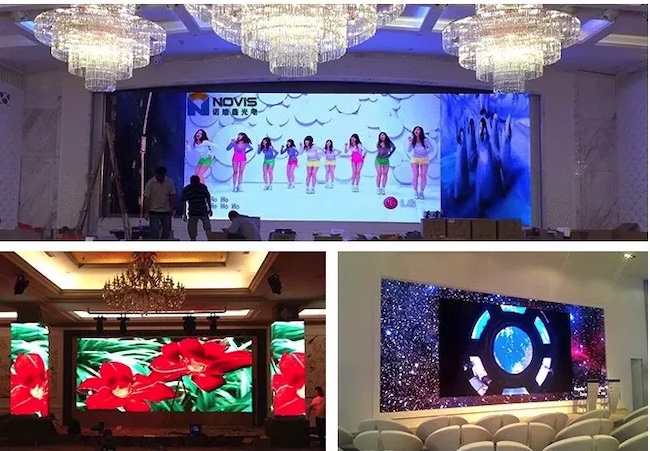

Application:
Widely applied in stadiums, advertising, banks, securities
exchange, stations, shopping malls, postal offices, schools,
monitoring, restaurants, entertainment, enterprises etc
FAQ:
Q1:LED display models are generally expressed in pixel, such as P2
P3 P4.....P8, P10, what does this mean?
A: P3 P4.....P8,P10 means that the pixel pitch is 3mm 4mm....10mm,
which determines resolution of a display .Pixel pitch is smaller,
led display resolution is higher.
Q2:What pixel pitch should I choose on my display?
A:Using the led screen, it is determined mainly by the viewing
distance, the size of the display screen, the desired effect and
the customer budget.
Q3: To order a display ,What kind of information do I have to offer
you?
A:You should provide width/height of the display, the main use, the
viewing distance, the scene photos, special requirements,then I can
provide you with a detailed list of quotations.
Q4:How to install?
A:Free of charge to provide detailed steel structure drawings and
installation guidance and wiring diagram, free remote debugging. We
can also send our engineers to the site to guide the installation
if needed.
