    4K Mini Led Display Panel

    Ask Lasest Price
    Brand Name : ledmanner
    Model Number : P1.25
    Certification : CE
    Price : USD1500-5500/㎡
    Payment Terms : T/T
    Supply Ability : 500㎡/week
    Delivery Time : 20days
    • Product Details
    • Company Profile

    4K Mini Led Display Panel

    4K High Definition Indoor TV P1.25 Full Color Mini LED Display Panel


    Quick Details:

    ● Easy maintaince and service(Mini LED Display Panel)

    ● Ledmanner MS-Plus with P1.2 P1.5 P1.6 P1.8

    ● Perfect screen flatness

    ● Support fully front service

    ● 320mm*160mm size module

    ● 640mm*480mm size cabinet

    ● Different modules use same magnetic cabinet


    Description:

    Ledmanner MS-Plus Series Small pitch Cabinet, with magnetic pre-maintenance, ultra-light, ultra-thin design, weight only 4.3KG, disassembly and maintenance only 20 seconds, IP level 30, high brightness, high contrast, 160 ° large viewing angle, Full front service indoor project solution, Mini LED Display Panel cost and function both perfect option.


    Specification:

    NameMS-P1.25 LED display module
    Plate Size320mm*160mm.
    Resolution256*128
    Pixels pitch1.25mm.
    Light color1R 1G 1B
    LED lampSMD1010
    Brightness≥500cd/sqm
    Drive mode1/32 scan,constant current
    Pixel density640000dots/sqm
    Refresh rate≥3840HZ
    Failed Rate<0.0001
    Best viewing distance≥1.25m
    MTBF10000 hrs
    Work life100000hrs
    System operating platformsWIN7WINXPWIN2000 etc.
    Data communicationRF/S-video/RGB/RGBHV/YUV/YC/COMPOSITION etc.
    Control systemPCTV card+DVI graphic card+control
    Control modeSynchronous/Asynchronous
    Max power consumption≤488.3W/sqm
    Maximum Current4.7A±0.3A
    Input Voltage(DC)4.8-5.5v
    Operating EnvironmentTemperature -20℃~+50℃;Humidity, 10%~90%RH.
    Working VoltageAC110V/220V ±10%

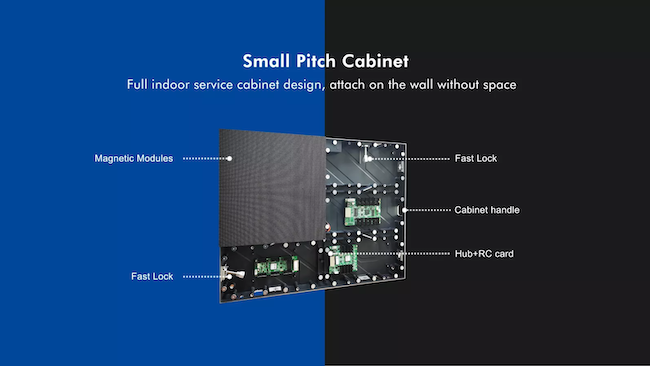

    Product Picture:


    Product Advantage :

    1 The weight of the box is 40% lighter than the traditional iron box, which saves a lot of cost
    2 Anti-knockdesigntoavoiddamagetothemodule,reducemaintenanceandimproveworkefficiency
    3 Maintainthesuctioncuptoolbeforeuse,suckthemodule(theironplateis installedonthebackofthemodule),easytodisassembleandassemble
    4 Highbrightness,highcontrast

    FAQ:


    Q: Are you trading company or manufacturer ?

    A: We are led display manufacturer of Mini LED Display Panel.


    Q: What is your terms of delivery?

    A: EXW, FOB, CFR, CIF.


    Q: How about your delivery time?

    A: Delivery time is 30-45days for repeat orders.Have a Stock for hot-seller products.The specific delivery time depends on the items and the quantity of your order.


    Q: Is it OK to print my logo on the product?

    A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.


    Q: Can you produce according to the samples?

    A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
