High Quality SMD Full Large Screen SuperMarket P5 Outdoor Full
Color LED Screen
Quick Detail:
● High cost performance
● Special waterproof design : IP67
● Perfect screen flatness
● Support back service
● 320mm*100mm size module
● Standard 960mm*960mm size cabinet
● Different modules use same cabinet
● Iron cabinet material, can be customized
Features:
1. The first level LED chip from Taiwan Epistar
2. With pure golden wire connection in LED
3. Grand A row material for module frame and mask
4. Ag alloy solder paster to ensure good soldering on PCB
5. Stainless steel screws when assembly
6. Two years warranty
Specification:
Part Number | P5 | P8 | P10 | LED Configuration | SMD 3 IN 1 | SMD 3 IN 1 | SMD 3 IN 1 | Pixel Density | 40000 pixel/m2 | 15325 pixel/m2 | 10000 pixel/m2 | Module size | 320*160 mm | 320*160 mm | 320*160 mm | Module Resolution | 64*32 dots | 40*20 dots | 32*16 dots | Screen Size | Customize | Customize | Customize | Cabinet Size | 960*960 mm | 960*960 mm | 960*960 mm | Cabinet Resolution | 192*192 dots | 120*120 dots | 96*96 dots | Cabinet Weight | 13kg | 13kg | 13kg | IP Rating | IP65 | IP65 | IP65 | Brightness | 5000-5500cds/m2 | 5000-5500cds/m2 | 5500-6000cds/m2 | Driving Mode | 1/8 scan | 1/5 scan | 1/2 scan or 1/4 scan | Display Scale | 16.7M | 16.7M | 16.7M | Refresh Frequency | 1920Hz | 1920Hz | 1920Hz | Operating Power | AC 96~242V | AC 96~242V | AC 96~242V | Operating Humidity | 10~90%RH | 10~90%RH | 10~90%RH | Operating Life | 100,000Hours | 100,000Hours | 100,000Hours |
|
Product image:
Description:

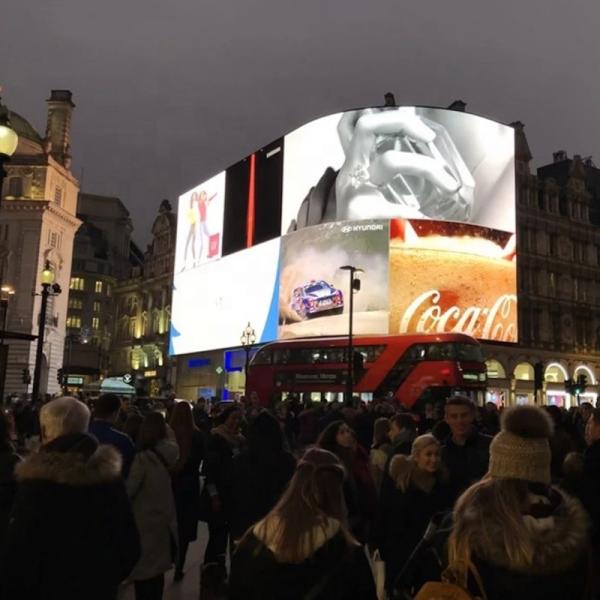

Outdoor full color LED display could be used in outdoor environment
such as airport, highway, cultural or relax square, commercial
walking street, residential sub-district, downtown, with various
real-time signal sources and the speciality of waterproof,
dustproof, staticproof, its purpose is to propagandize outdoor
advertising or play the important news or events or TV program etc.
Advantage:
High refresh rate, high brightness and high contrast which make the
screen with no delay and smear phenomenon in direct sunlight.
Energy saving: low electric current, high-bright lamps, equipped
with PFC switching power supply that save 30% electricity.
The brightness is adjustable to meet the need of changing
environment.
Wide viewing angle: The horizontal and vertical viewing angles are
so wide that it is suitable for wide horizontal.
Environment protection, antistatic, dust-proof, good heat
dissipation, cost-effective .
Error detection and monitoring: it can monitor the inner
temperature, voltage, cooling fans etc and make error detection
automatically.
High reliability: using distributed scanning technology and module
design technology that make higher reliability and stability.
Convenient installation and maintenance of display screen.
Service:
1, You inquiry will be replied within 24Hrs.
2, OEM&ODM, any your customized lightings we can help you to
design and put into product.
3, We can offer unique design and our current models for you.
4, Discount is available according to your order quantity.
5, Excellent after-sale service.
FAQ:
1) Q: Is Ledmanner a factory or simply a trading company?
A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE,
for more information on this issue.
2) Q: What payment methods are available to me?
A: We accept most oft the payment methods, but mainly accept T/T,
L/C, Western Union and AliPay
3) Q: How long is the warranty time?
A: 1 Year on the panels and 3 years on the electronic controller
boards.
4) Q: Do you give any discounts ?
A: Prices are directly affected by the quantity. Simple ratio's,
cost more to produce small qty and samples orders then largerones.
We have many ways to help our partners when starting the sample
processes. Make sure to ask your Key Account MGR on how we can make
you save some charges.
