HD P6mm Billboard Advertising Outdoor Full Color LED Screen
6500Cd/㎡
Quick Detail:
● High cost performance
● Special waterproof design : IP67
● Perfect screen flatness
● Support back service
● 320mm*100mm size module
● Standard 960mm*960mm size cabinet
● Different modules use same cabinet
● Iron cabinet material, can be customized
Product feature:
Stable performance, wide applicability, high refresh rate, high
protection grade, superb cost effective:
1. The cabinets, featuring great moisture and corrosion proofing,
enable themselves to work in all weather conditions.
2. Superb refresh rate provides you coherent video effects to meet
your needs for high display quality.
3. Superb cost effective offers you both top notch quality and
reasonable price, maximizing the value of your investment
Specification:
| Model | P6 | | Pixel pitch(mm) | 6.0 | | Configuration | SMD2727 | | Module dimension(mm) | 192x192 | | Module weight(kg) | 0.37 | | Panel dimension(mm) | 768x768x120 | | Panel weight(kg) | 55 | | Pixel density(dots/㎡) | 27777 | | Flatness error(mm) | ≤0.1 | | Viewing angle | 120°/120°(Horizontal/Vertical) | | Brightness(cd/㎡) | 6500 | | Color temperature(K) | 5000~9500 (Adjustable) | | Contrast | 4000:1 | | Repetition frequency | 50/60Hz | | Refresh frequency(Hz) | 1200 | | Gray scale | 65536 | | Ave. power(W/㎡) | 440 | | Max power(W/㎡) | 1100 | | Working temp./humidity | -10~40℃/10%~80%RH | | Storing temp./humidity | -20~60℃/10%~85%RH | | Panel structure | Iron | | Maintenance | Rear | | Protection | IP65/IP54 | | Driving mode | Constant current driver | | Scanning | 1/4 | | Power requirements | AC90~264V, 47~63Hz | | Life time(hrs) | 100,000 | | Certificate | CCC/TUV-CE/ETL, etc. |
|

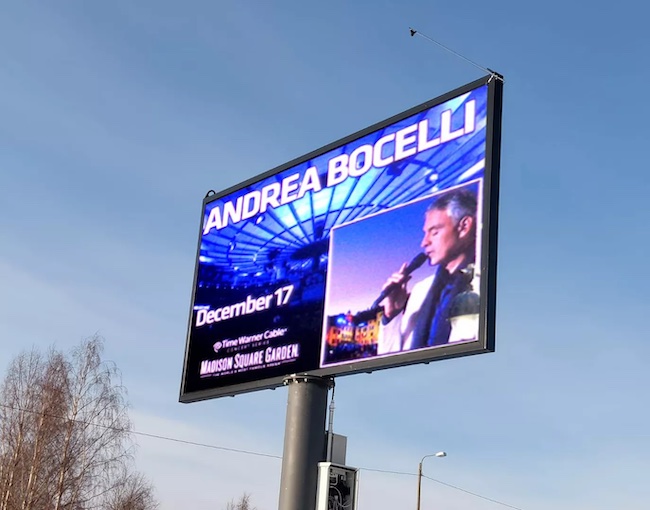

Product image:
Advantage:
1) High refresh rate, high brightness and high contrast which make
the screen with no delay and smear phenomenon in direct sunlight.
2) Energy saving: low electric current, high-bright lamps, equipped
with PFC switching power supply that save 30% electricity.
3) The brightness is adjustable to meet the need of changing
environment.
4) Wide viewing angle: The horizontal and vertical viewing angles
are so wide that it is suitable for wide horizontal.
5) Environment protection, antistatic, dust-proof, good heat
dissipation, cost-effective .
6) Error detection and monitoring: it can monitor the inner
temperature, voltage, cooling fans etc and make error detection
automatically.
7) High reliability: using distributed scanning technology and
module design technology that make higher reliability and
stability.
8) Steady and reliable system: with strong anti-interference
ability and long service life that can continually work for over 24
hours, and it’s easy to operate the system.
9) Convenient installation and maintenance of display screen.
Application:
This kind of LED full color led video wall is appliled for
advertising, city beautifying, information publicity, great
concerns and relative activities.
·--- Outdoor advertising, digital billboards, advertising in big
companies
·--- Sports halls, fields, playgrounds.
·--- Airports, bus stations and railway passenger terminals.
·--- Facades of shopping malls, department stores, banks and car
dealerships.
Service:
Technical training
Our company will train the users based on the manual, system use
guide and maintenance guide. The training include system use,
system maintenance and equipment protection.
After-sales services modes
A. Phone service
We after-sales Services Department provides customers with 24
–hour- phone service. When you contact us, please let us know the
following information:
1. Your name and phone number
2. Product model
3. Detailed fault information (if the fault could be presented by
pictures, please takes pictures and sends them to us as possible as
you can)
Our after-sales service engineers will offer technical support and
guidance based on your description.
B. Real-time communication service
We after-sales service engineers could provide customer services
through TM & E-mail & Skype, for example, sending the video files
of software operation & graphic card setup by TM to show how to
operate.
C. Remote control service
We can operate the customer’s computer remotely via Internet, to
install and set up software for customers, and to dispose of the
technical fault of LED display system software.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are led display manufacturer.
Q: What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q: How about your delivery time?
A: Delivery time is 30-45days for repeat orders.
Have a Stock for hot-seller products.
The specific delivery time depends on the items and the quantity of
your order.
Q: Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
