Signage Flexible Modules Wall Advertising TV Board Commercial LED
Display Screen
Quick Detail:
1) LED: well-known international brand,with wide viewing angle
,little attenuation ,good heat dissipation, and vivid colors.
2) Driving IC: famous brands such as, Taiwan MBI, Japanese Toshiba,
avoidable the defective phenomena, such as dark bright, virtual
light and so on.
3) Power supply: industrial-strength brand.The power maximum power
resere of 20% the space , the range of voltage fluctuation is less
5%, high stability.
4) Connector: Aerial grade brands ensure the stable transmission of
power and signal.
5) PCB Board: adopt 4-layer design.
6) Easy installation:100 pieces of cabinets' installation can be
finished in one hour by one person.
The replacement of any cabinet can be done within 50 seconds.
Description:
Modular small-unit and flexible design,makes possiblity of more
complicated shapes of video show.
Assembling screen with modules directly,saving time and effort,easy
operation.
Magnet connection,apt to assemble & disassemble,maintain & replace.
No cabinet metal frame,drastically deducting the screen weight.
Strict quality control and long-term application experience
verified the stablity and excellent performance.
Specification:
| Specificaion | Indoor p2.5 soft module | | Pixel pitch(mm) | 2.5 | | Pixel Density(dot/m2) | 160000 | | Bending time | 1000 without break | | LED configue | 1r1c1b | | LED type | SMD1515 | | Brightness(cd/n2) | 1100 | | Drive mode | 20s | | Drive IC | FM6363 | | Grayscale | 14 bit | | Refresh Rate(HZ) | 1920/3840 | | Frame Rate(HZ) | 60 | | Brightness Ajustment | manual/automatic/remote control | | Color Temperatur | 9000±500k | | Best Viewing Distanc | ≥3m | | Module dimension(mm) | 240x120x7 | | Module weight(kg/pc) | 0.2 | | Mdoule Resolution(dot) | 96x48 | | Cabinet Dimension | Randomly splicing | | Working Voltage | AC 220 | | Avg. Power Consumption (w/m2) | 260 | | Max. power Consumption (w/m2) | 600 | | Serive access | Front and rear | | Ip grade | IP 30 | | Working Environment(℃/%RH) | -20~60℃/10~90%RH Without condensation | | Storage Environment ( ℃/%RH) | -40~80℃/ 10~90%RH | | Lifetime (H) | Lifetime (H) | | Compliant Standard | CCC,CE |
|

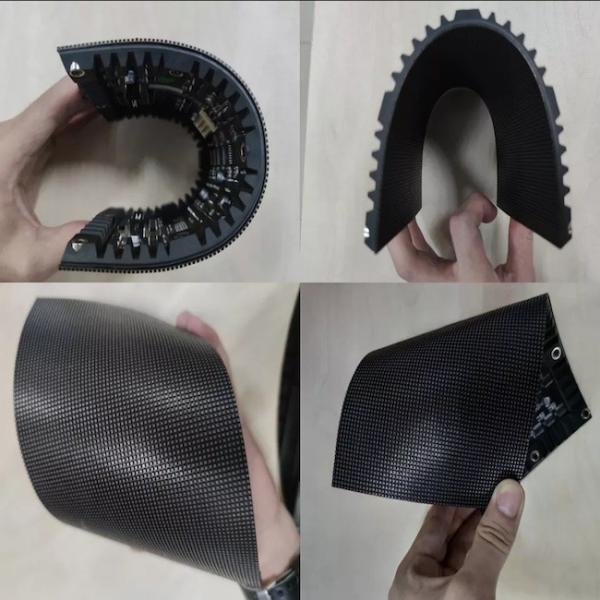

Product Image:
Advantage:
The flexible led module is super thin, very light weight and
suitable to design different shapes, effects, in any types, arc in
any angles. With repeating curving,it won't break LEDs as well design of mask
covers.
1.Module with small-unit and flexible design,makes possiblity of
more complicated shapes for the video show.
2.Assembling screen with soft led modules directly,saving time and
effort,easy operation.
3.Magnet connection,easy to assemble & disassemble,it is frontal
service maintenance.
4.No cabinet metal frame,drastically deducting the screen weight.we
can design any shape of structure as you need.
5.Strict quality control and long-term application experience
verified the stablity and excellent performance by using Epistar
LED, and FM6363 Driving IC for high refresh rate and performance.

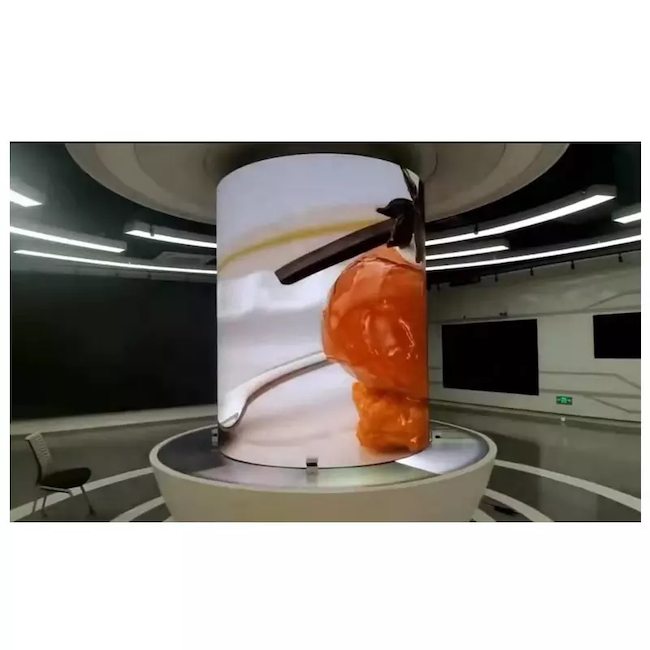

6.Widely applied in shaped stage background/exhibition/shopping
mall etc.
Features:
Special design
Seamless and lightweight
Flexible to design shapes,effects,in any types
Modular design for easy installation and maintenance
Easy transport,save shipping cost
Brilliant colors, breathtaking grayscales
Operating software compatible with widely available software
Remove the tools, improve the serviceability
Why choose us?
1. 8 years of experience in manufacturing LED screens of different
application
2. Implementation of the project on the screen of any complexity
3. faster delivery products from China
4. engineers' experience for 5 years
5. Technical Support (from design to debug screen display)
Our service for you:
1. pre-sales: collect customer all local information, according to
customers’ requirements, Selection of technical scheme, Considering
the availability,
usability, maintainability, choose the best solution for customers.
2. On sales: strictly follow production plan, professional
installation instruction, on-site field debugging, guidance using
the led display
3. After sales: Collection of complaint information(including all
kinds of contacts), in time confirm complaint information, analysis
problem and give solutions
Technical support:
1. Installation and Maintain Manual
2. LED display system connection diagram
3. Data wire connection diagram
4. Power supply wire connection diagram
Trade Terms:
1. Packing: Anti-shaking wooden cabinet /Air flight case/carton.
2. Shipping port: Shenzhen. China.
3. Shipping freights are quoted according to your requests.
4. Delivery time:5-15 working days.
5. 2 years warranty ,lifelong maintaining. In the Maintenance
period, free of all maintenance charges. After Maintenance
period,only charge the material costs fees.
FAQ:
Q1. Are you trading company or manufacturer?
A: We are a professional led screen manufacturer.
Q2. What is your terms of payment?
A: T/T or Western Union 30% as deposit, and 70% before delivery.
We'll show you the photos of the products and packages before you
pay the balance.
Q3. Do you provide samples ? is it free or extra?
A: We can supply the sample if we have ready parts in stock, but
the customers have to pay the sample cost and the courier cost.
Q4. How about your delivery time?
A: Generally, sample needs 3-5 days, mass production time needs 1-2
weeks for order quantity more than.
