P4 Flexible Curved Indoor Flexible Surface Soft Commercial LED
Display Screen
Quick Detail:
Flexible LED Display Screen:
1. Relatively low cost;
2. Stable capability;
3. High brightness;
4. Good after-sales.
Description:
1. Light weight: it can be loaded by one person, quick assembling,
quick maintain, reduce. carrying, save costs.
2. Thin cabinet:the thickness is only 6.5 CM, the space of the
screen is small , and the entire screen will be more beautiful.
3. Flat screen:smooth surface error is under 0.2cm, it can remove
the mosaic phenomenon .effectively. The effect of the display will
be more clear and exquisite.
Specification:
| Specificaion | Indoor p4 soft module |
| Pixel pitch(mm) | 4 |
| Pixel Density(dot/m2) | 62500 |
| Bending time | 1000 without break |
| LED configue | 1r1c1b |
| LED type | SMD2121 |
| Brightness(cd/n2) | 1100 |
| Drive mode | 16s |
| Drive IC | MBI5124 |
| Grayscale | 14 bit |
| Refresh Rate(HZ) | 1920 |
| Frame Rate(HZ) | 60 |
| Brightness Ajustment | manual/automatic/remote control |
| Color Temperatur | 9000±500k |
| Best Viewing Distanc | ≥4m |
| Module dimension(mm) | 320x160x7 |
| Module weight(kg/pc) | 0.2 |
| Mdoule Resolution(dot) | 96x48 |
| Cabinet Dimension | Randomly splicing |
| Working Voltage | AC 220 |
| Avg. Power Consumption (w/m2) | 260 |
| Max. power Consumption (w/m2) | 600 |
| Serive access | Front and rear |
| Ip grade | IP 30 |
| Working Environment(℃/%RH) | -20~60℃/10~90%RH Without condensation |
| Storage Environment ( ℃/%RH) | -40~80℃/ 10~90%RH |
| Lifetime (H) | Lifetime (H) |
| Compliant Standard | CCC,CE |

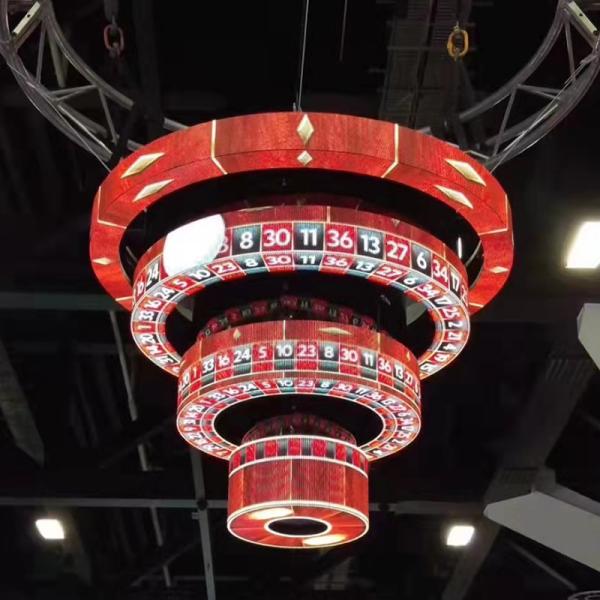

Product Image:
Advantage:
Flexible and bendable
The flexible chassis and soft cover design enable user to bend it
freely, so it can be assembled at any any uneven or irregular
locations.
Super thin and light
MANNLED Flexible LED Sign is one of the thinnest & lightest LED
signs in the world with special materials and advanced technology.
Every module is only 9mm thick and has a weight of 280g.
Very easy to splice, install and maintain
Modularization design and no other connected cables make the
installation so easy.
User just mounts iron sheet or magnetic product on the surface in
the first, then stick
the Flexible LED sign on the surface .
High brightness
MANNLED Flexible LED Sign makes use of the high-brightness SMD method,
which makes it tremendously excellent in luminance, uniformity,
maintainability compared with the traditional LED dot-matrix
displays.
Wide application
Enterprise reception ,appliances stores, sports stores, exhibition
hall of fairs , cosmetics counters , shopping
mall. banking, financial securities, post office, ferry, shopping
malls, railway stations, telecommunications, government, offices,
monitoring, schools, restaurants, hotels, entertainment.
Features:
Modular small-unit and flexible design,makes possiblity of more
complicated shapes of video show.
Assembling screen with modules directly,saving time and effort,easy
operation.
Magnet connection,apt to assemble & disassemble,maintain & replace.
No cabinet metal frame,drastically deducting the screen weight.
Strict quality control and long-term application experience
verified the stablity and excellent performance.
Widely applied in shaped stage background/exhibition/shopping mall
etc.
Our Service:
1) Your inquiry related to our products or price will be replied in
24hrs
2) OEM&ODM,any your customized lightings we can help you to
design and put into product
3) Distributoership are offered for your unique design and some our
current models
4) Protection of your sales area,ideas of design and all your
private information
5) Top Quality+Reasonable Price+Responsible After
Service=Successful & Win
Trade Terms:
1. Packing: Anti-shaking wooden cabinet /Air flight case/carton.
2. Shipping port: Shenzhen. China.
3. Shipping freights are quoted according to your requests.
4. Delivery time:5-15 working days.
5. 2 years warranty ,lifelong maintaining. In the Maintenance
period, free of all maintenance charges. After Maintenance
period,only charge the material costs fees.
FAQ:
1. How can I get an accurate quote for an advertising signage LED
video wall display screen?
a. Please let us know for indoor or outdoor use
b. Please tell us the usage scenarios (concerts, churches,
exhibition halls, conference rooms, shopping mall billboards)
c. It would be better to have CAD drawings, renderings and the
exact size of the LED screen
2. How long does it take for me to get the price of indoor and
outdoor LED display screen?
We usually quote within 8 hours after receiving your inquiry
(excluding weekends and holidays). -If you need a price urgently,
please send a TM message, email or contact us by other means so
that we can quote you.
3. Can I buy samples and place an order?
-Can. Please feel free to contact us.
4. What is your delivery time?
-Depending on the order type and quantity, LED modules in stock
will be shipped next day. Usually small quantities of customized
products are shipped within 15 days, and large quantities are about
30 days.
