    Circular Curved Modular LED Display Panels Indoor Roll Folding

    Ask Lasest Price
    Brand Name : Ledmannner
    Model Number : P2.5
    Certification : CE,FCC,ROHS
    Price : USD4-900
    Payment Terms : T/T
    Supply Ability : 10000pcs/month
    Delivery Time : 5-8work days
    • Product Details
    • Company Profile

    Circular Curved Modular LED Display Panels Indoor Roll Folding

    Indoor Roll Folding Soft Module Round Circular Curved Modular LED Display Panels


    Quick Details:

    Panel size: highly customized according to different application

    Mininum diameteter: 30cm, ultra small; 4 modules are able to be build a smooth round circle

    Panel weight: about 20kg/m2

    Service: front service by magnets

    Working voltage: 110V // 220V


    Feature:

    Flexible LED Display Screen:
    1. Relatively low cost;
    2. Stable capability;
    3. High brightness;
    4. Good after-sales.


    Specification:

    Model No.

    P1.25

    P1.57

    P1.66

    P1.87

    P2

    P2.5

    P3

    Pixel Pitch (mm)

    1.25

    1.579

    1.667

    1.875

    2

    2.5

    3

    LED Type

    SMD 1010

    SMD 1010

    SMD 1010

    SMD 1010

    SMD 1515

    SMD 2121

    SMD 2121

    Module Dimension (W*H) (mm)

    240x 120

    240x 120

    240x 120

    240x 120

    240x 120

    240x 120

    240x 120

    Module Resolution (W*H) (Pixel)

    192x 96

    152x 76

    144x 72

    128x 64

    120x 60

    96x 48

    80x 40

    Pixel Density (pixel/㎡)

    640000

    401111

    360000

    284444

    250000

    160000

    111111

    Scan Mode (S)

    48

    38

    36

    32

    30

    24

    20

    Best Viewing Distance (m)

    1.25

    1.576

    1.667

    1.875

    2

    2.5

    3

    Brightness (nits)

    900

    900

    900

    900

    900

    900

    900

    Ingress Protection (Front/Rear)

    IP31

    IP31

    IP31

    IP31

    IP31

    IP31

    IP31

    Viewing Angle

    H:140° V:140°

    Color Temperature

    3200~ 9500K

    Gray Level

    14bit

    Max Power
    Consumption
    (W/㎡)

    700

    700

    700

    700

    700

    700

    750

    Average Power
    Consumption (W/㎡)

    250

    250

    250

    250

    250

    250

    300

    Refresh Rate (Hz)

    1920~ 3840

    Maintenance Method

    Rear/ Front Maintenance

    Operating Temperature

    -20°~ 60°

    Operating Humidity

    10%~ 95%RH

    Input Voltage

    Ac110~ 220V±15% 47~ 64Hz

    MTBF (Hours)

    50000

    Life Time (Hours)

    100000

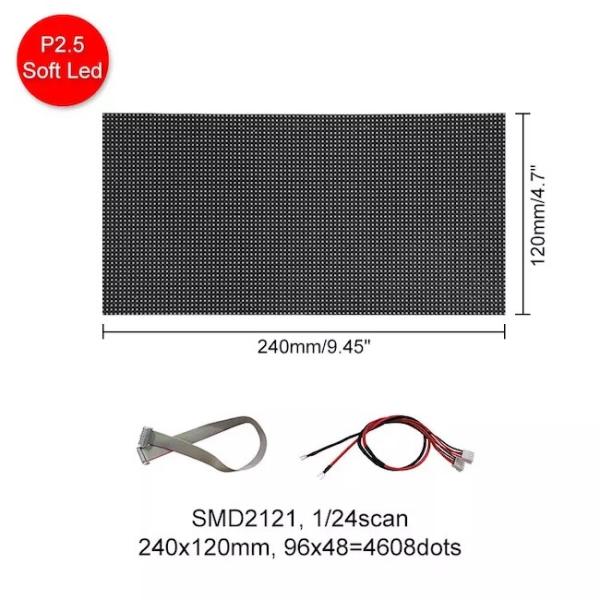

    Product Images:


    Advantages:

    1. Brightness: >1600 cd/m2. the pixel can be adjusted point by point to reach the white balance.

    2. Special design, the screen can be curved to any shape.

    3. Without steel frame, the screen is very light, it is good for building body. only using a hanging bar, it can be installed easily and fast


    Description:

    1. Light weight: it can be loaded by one person, quick assembling, quick maintain, reduce. carrying, save costs.
    2. Thin cabinet:the thickness is only 6.5 CM, the space of the screen is small , and the entire screen will be more beautiful.
    3. Flat screen:smooth surface error is under 0.2cm, it can remove the mosaic phenomenon .effectively. The effect of the display will be more clear and exquisite.

    4. Quick dismounting:adopt fast locking structure connected, firm, quick, beautiful.
    5. Low release heat: low noise, low consumption, low cost, excellent thermal design and excellent thermal dispersion.


    Our Service:

    1. Your inquiry related to our products or price will be replied in 24hrs

    2. OEM&ODM,any your customized lightings we can help you to design and put into product

    3. Distributoership are offered for your unique design and some our current models

    4. Protection of your sales area,ideas of design and all your private information

    5. Top Quality+Reasonable Price+Responsible After Service=Successful & Win

    6. Export countries : Peru, Mexico, Colombia, Turkey, US, UK, etc.


    Applications:

    We would like to offer you fast suggestion on the project if you can give us the information according to the questions

    1. The screen type : outdoor wall or on the ground by the column?

    2.what will be appear on the screen? Text or video or any special requirement ?

    3.The location of the screen photos

    4 The best proportion of the screen is 4:3 or 16:9. We would like to help you account the exactly size according to the location size .

    The main application areas: shopping centers, hospitals, banks, enterprises and public institutions, exhibition hall, hotel, schools, stage, bank, securities, public security, transportation, Industry and Commerce, electricity, customs, hospitals, parks, airports, stations, stadiums and so on.


    FAQ:

    Q1: How could I buy the products I need if there is no price in the website?
    A: You can send your inquiry to us about the products you need,our sales will reply you within 24 hours to help you make the order.


    Q2: How long could I get reply of my inquiry?
    A:You will get a reply within 24 hours.

    Q3: What kind of warranty do you offer?
    A: Different product offer different time frame warranty, but all product here we offer 2 year at least warranty.

    Q4: How is the after sales service?
    A: We have a professional team which is in charge of after-sales service, also a service hot-line dealing with your complains and feedback.We also offer 24-hour online service to help you solving problems.
