Soft Indoor 1.8mm For Rental And Fixed Applications Flexible Led
Display Screens
Features:
- Can bent into irregular shapes flexibly
- Can be round, arc, waving,,, and other shapes
- Color your stage and make more choice except standard screens
Description:
1. Light weight: it can be loaded by one person, quick assembling, quick maintain,
reduce. carrying, save costs.
2. Thin cabinet:the thickness is only 6.5 CM, the space of the screen is small ,
and the entire screen will be more beautiful.
3. Flat screen:smooth surface error is under 0.2cm, it can remove the mosaic
phenomenon .effectively. The effect of the display will be more
clear and exquisite.
4. Quick dismounting:adopt fast locking structure connected, firm, quick, beautiful.
Specification:
| Model | flexible led display screens |
| Pixel pitch (mm) | 1.875 |
| Configuration | SMD1010 |
| Module dimension (mm) | 240 x120 |
| Module resolution(dots) | 128x 64 |
| Module weight(kg) | 0.28 |
| Pixel density(dots/㎡) | 284444 |
| Flatness error(mm) | ≤0.1 |
| Viewing angle(°) | 140/140(Horizontal/Vertical) |
| Brightness(cd/㎡) | ＜1000 |
| Brightness adjustment | 256 levels by software |
| Contrast | 4000:1 |
| Repetition frequency(Hz) | 50/60 |
| Refresh frequency(Hz) | ≥600 |
| Gray scale(bit) | 16 |
| Ave. power(W/㎡) | 275 |
| Max power(W/㎡) | 550 |
| Working temp./humidity | -20~45℃/10%~80%RH |
| Storing temp./humidity | -30~60℃/10%~85%RH |
| Scanning | 1/32S |
| Power requirements | AC90~264V, 47~63Hz |
| Signal Transmission Distance | CAT cable:<100m; Single mode fiber:<10km |
| Installation type | Fix |
| Life time(hrs) | 100,000 |
| Data input | RF,S-Video,RGB, RGBHV,YUV,YC,COMPOSITION etc. |
| Module material | Flexible PCB + hard board(FPC+FR-4) |
| Certificate | CCC/TUV-CE/Rohs, etc. |

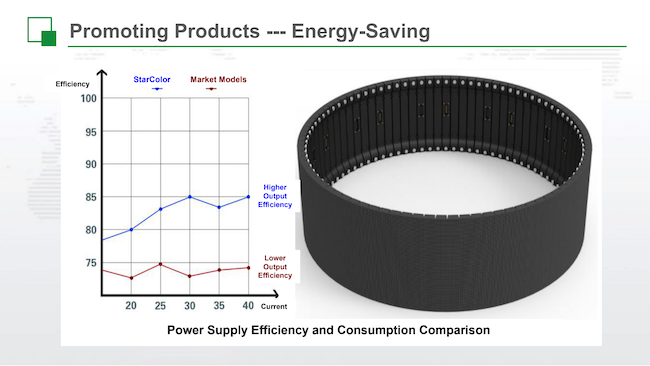

Product Image:
Service:
Before sales:
According to the client's demands, Ledmanner sales will provide a
set of LED display project solutions with Ledmanner engineer's professional advices.
In sales:
Ledmanner engineer will offer installaiton steps and guidance based on the
detailed installation environment including temp. humidity,
installation venue, etc.
If it is a big event, Ledmanner engineer can stay there with you to ensure everything goes well.
Romote control will help us build communications and debug the
control software for you no matter where you are.
After sales:
2 years of free maintenance since the delivery of LED display; Ledmanner engineer will provide free technology support through phone and
email in time.
FAQ:
Q: If have quality problems, how do you solve them?
A: Please provide relevant videos and photos within one month of
receipt of the shipment. We will verify it at first. If it is
really quality problem, we will work with the engineer to assist
you in solving the problem. If we cannot solve it, we will give you
a refund or resend you new one for free, but we will not bear the
freight.
Q: Do you have any MOQ limit for order?
A: Low MOQ, 1pc for sample checking is available
Q: Can i place a sample order before i decide to do the mass
production?
A: Yes, we acceptable sample orders led display, please let us know
your detail request then we will send you the sample asap for
confirmation.
