    HD P2.5 Indoor Full Color Commercial SMD Flexible Led Display Screens

    Ask Lasest Price
    Brand Name : ledmanner
    Model Number : P2.5
    Certification : CE ROHS FCC
    Price : RMB3500-8000/㎡
    Payment Terms : T/T
    Supply Ability : 1000㎡/week
    Delivery Time : 20days
    • Product Details
    • Company Profile

    HD P2.5 Indoor Full Color Commercial SMD Flexible Led Display Screens

    HD P2.5 Indoor Full Color Commercial SMD Flexible Led Display Screens


    Quick Details:

    *Easy Installation and Disassembly
    *Light Weight
    *Magnetically Fixed or Screwed


    Advantage:

    Flexible Led Display Screens is ultra-light weight, semi-transparent, rollable, LED video display suitable for both indoor and outdoor applications. It’s specially designed for both backdrop applications and creative LED designs. The soft LED screen is ultra-slim and ultra-lightweight, and increased design opportunities and lowered transportation costs. The soft LED screen adopts high quality LED and chip, the refresh frequency is super high as above 1000Hz, which ensures no flicker or black strip and no image distortion.


    Specification:

    Modelflexible led display screens
    Pixel pitch (mm)2.5
    ConfigurationSMD2020
    Module dimension (mm)320 x160
    Module resolution(dots)128x 64
    Module weight(kg)0.28
    Pixel density(dots/㎡)160000
    Flatness error(mm)≤0.1
    Viewing angle(°)140/140(Horizontal/Vertical)
    Brightness(cd/㎡)<1000
    Brightness adjustment256 levels by software
    Contrast4000:1
    Repetition frequency(Hz)50/60
    Refresh frequency(Hz)≥600
    Gray scale(bit)14
    Ave. power(W/㎡)275
    Max power(W/㎡)550
    Working temp./humidity-20~45℃/10%~80%RH
    Storing temp./humidity-30~60℃/10%~85%RH
    Scanning1/10
    Power requirementsAC90~264V, 47~63Hz
    Signal Transmission Distance

    CAT cable:<100m;

    Single mode fiber:<10km

    Installation typeFix
    Life time(hrs)100,000
    Data inputRF,S-Video,RGB, RGBHV,YUV,YC,COMPOSITION etc.
    Module materialFlexible PCB + hard board(FPC+FR-4)
    CertificateCCC/TUV-CE/Rohs, etc.

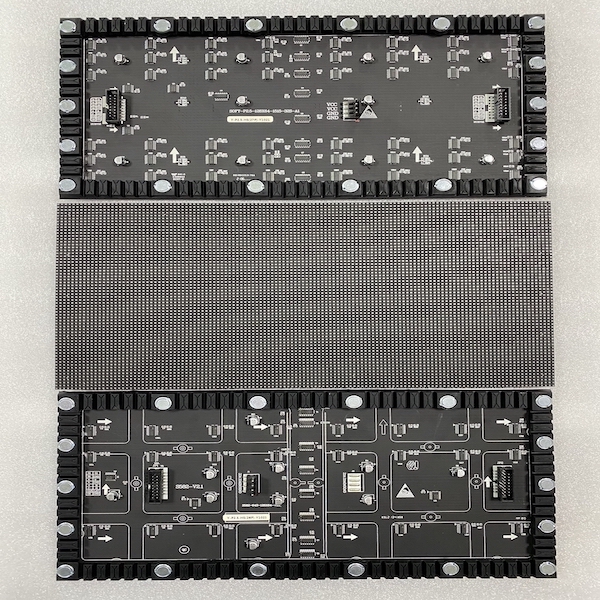

    Product Image:


    FAQ:

    Q1:LED display models are generally expressed in PX, such as P2 P3 P4.....P8, P10, what does this mean?
    A: P3 P4.....P8,P10 means that the pixel pitch is 3mm 4mm....10mm, which determines resolution of a display .Pixel pitch issmaller, led display resolution is higher.

    Q2:What pixel pitch should I choose on my display?
    A:Using the PX screen, it is determined mainly by the viewing distance, the size of the display screen, the desired effect and thecustomer budget.

    Q3: To order a display ,What kind of information do I have to offer you?
    A:You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements,thenIcan provide you with a detailed list of quotations.

    Q4:How to install?
    A:Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram, free remote debugging.We can also send our engineers to the site to guide the installation if needed.
