P3, P4, P5 Custom Size Indoor Fixed Installation Indoor Full Color
LED Screen
Quick Details:
Seamless connection;
Signal backup and power backup;
Brightness and chromaticity calibration;
Mixed use of cabinets from different batches;
True color reproduction;
Anti-ghost;
High gray scale (16bit) and high refresh rate (1920Hz);
Lower power consumption with high PFC power supply, the drive
current of each LED lamp only less than 30mA;
Customizable design.
Feature :
1. Customized design for Elnor high definition hd led video
display.
2. True color reproduction & authentic video quality for HD Elnor
SMD full color led video display.
3. Ultimate system reliability for new products high refresh high
quality digital led display indoor.
4. Fast set-up, easy service for indoor HD SMD full color hd LED
video display.
Specification:
| Model | P2.5 | P3 | P4 | P5 |
| Pixel pitch (mm) | 2.5 | 3.0 | 4.0 | 5.0 |
| Configuration | SMD2020 | SMD2020 | SMD2020 | SMD2020 |
| Module dimension (mm) | 240x240 | 192x192 | 256x128 | 320x160 |
| Module weight(kg) | 0.35 | 0.36 | 0.21 | 0.43 |
| Panel dimension(mm) | 480x480x80 | 576x576x85 | 768x768x72 | 640x640x90 |
| Panel weight(kg) | 8 | 7.8 | 20.6 | 7.8 |
| Pixel density(dots/㎡) | 160000 | 111111 | 62500 | 40000 |
| Flatness error(mm) | ≤0.1 |
| Viewing angle(°) | 120°/120°(Horizontal/Vertical) |
| Brightness(cd/㎡) | 1000 | 1200 | 1200 | 800 |
| Color temperature(K) | 5000~9500 (Adjustable) |
| Contrast | 4000:1 |
| Repetition frequency(Hz) | 50/60Hz |
| Refresh frequency(Hz) | 1080 | 600 | 600 | 1200 |
| Gray scale(bit) | 16 |
| Ave. power(W/㎡) | 400 | 480 | 280 | 300 |
| Max power(W/㎡) | 1000 | 1200 | 680 | 440 |
| Working temp./humidity | -10~40℃/10%~80%RH |
| Storing temp./humidity | -20~60℃/10%~85%RH |
| Panel structure | Die-casting aluminum | Iron |
| Maintenance | Rear |
| Protection | IP40/IP21 |
| Driving mode | Constant current driver |
| Scanning | 1/24 | 1/16 | 1/16 | 1/16 |
| Power requirements | AC90~264V, 47~63Hz |
| Signal Transmission Distance | CAT cable:<100m;Single mode fiber:<10km |
| Installation type | Fix |
| Life time(hrs) | 100,000 |
| Certificate | CCC/TUV-CE/ETL, etc. |
Product Image:
Advantage:
1. High brightness and be adjustable. Built-in functional card
support brightness automatically adjustment.
2. A turn-key solution including professional sports software and
hardware.
3. Rich advertising LED display engineering experience both in
domestic and oversea market.
4. Elnor product stability through strict quality control system.
5. Price Advantage: Best competitive price for Elnor Indoor hd led
video display indoor.
6. Performance Advantage: Best equality, high consistency, High
refresh rate, high consistency, Best brightness, big viewing
angle...
7. Quality advantage: From material to finished product, from
design to produce, we control all steps, include the guarantee of
the quality and reliability.
8. Service advantage: with professional service team for 24 hours
service, Better service at same situation, better cooperation at
same service.
Description:
1. The cabinet is made of Die-Casting aluminium , so can be spliced
with no crack. The thickness of the cabinet is only 80mm. The
assembling can be much quicker and more efficient for no tools is
needed, which help customers to transportand mount without any
difficulties ,reduce the cost of use greatly!
2. The SMD three-in-one technology with high brightness makes the
display has a ultra-wide view and smoother pictures when in use.
3 . Low power consumption and good performance of dissipating heat
make it work normally in the condition of no air conditioning.
4. Which help customers to transport and mount without any
difficulties ,reduce the cost of use greatly!
Service:
1) Your inquiry related to our products or price will be replied in
24hrs
2) OEM&ODM,any your customized lightings we can help you to
design and put into product
3) Distributer ship are offered for your unique design and some our
current models
4) Protection of your sales area,ideas of design and all your
private information
Why choose us?
1. High quality:100% tested before shipping, Best quality LED chip
tube the CREE, SILAN, OPTO, EPISTAR assuring high brightness and
long life span. industry-leading
2. Strong productivity:50000 pieces per month, Shorter delivery
time
3. Good price:our price is 10% lower than the market because of the
introduction of full
automatic production line with the characteristics of reducing the
cost of labor and management.
4. Light weight:aluminum cabinet greatly saving fright cost and
conveniently installing.
5. Stable performance:our most basic guarantee:the aging time
exceeding 24 hours. Malfunction
dot rate less than 0.0001. MTBF more than 1000 hours.
Application:
Indoor led screen is widely used in stadium, shopping mall, station,
office and hotel for advertising with characteristics of high
brightness, large viewing angle, high safety, long life span, light

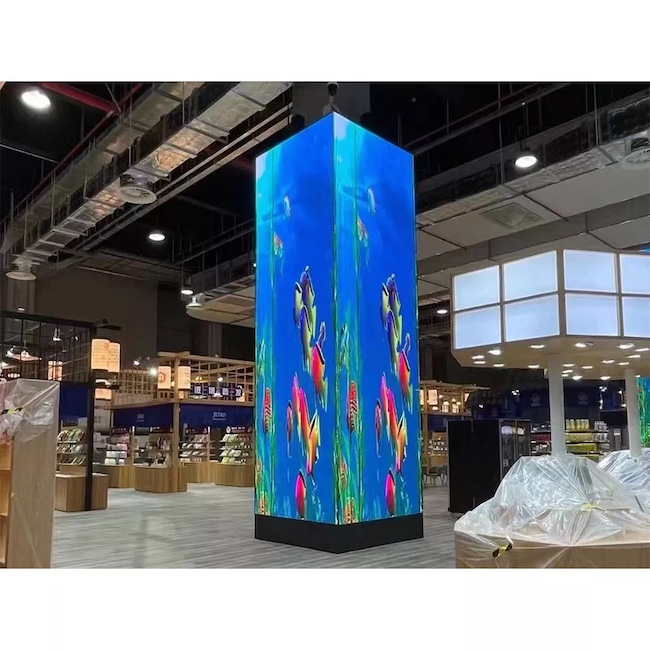

weight, fast installation and easy maintenance etc. Indoor led
display can be mainly divided into mounted screen and pillared
screen..
FAQ:
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2: What LED screen size you can do?
A: Screen size can be customized based on your demand.
Q3: How to control the LED screen?
A: We can configure control system, from Novastar or Colorlight,
operation is easy.
Q4: Can you provide installation structures?
A: Yes, we can provide installation structures for wall-mounted and
stacking installation.
Q5: Do you test your LED screen before shipping?
A: Yes, we do 100% product ageing test for 72 hours before package
and shipping.
