High Refresh Interactive P3.91 Led Floor Display Waterproof Dance
Floor LED Display Screen
Quick Details:
● Good heat disptach
● Cabinet is made of iron sheet
● Structure is stronger
● The load-bearing performance is high.
● Mask is shock-proof plastic, wear-resistant
● Ledmannner dance floor led display screen is not easy to scratch
Description:
1. Ultrathin and light weight :
each cabinet weights only 12 kg,easy to install and transport.
2. Noiseless :
Die casting Aluminum cabinets,fanless design with noiseless power
supply.
3. Seamless :
High precision CNC maching,precision up to 0.1mm
4. Fast installation and dismanling :
connection lock between cabients are patented,closely
combined,safemreliable and adjustable,50 cabinets can be installed
in one hour.
5. Unique blanking circuit :
high definition display by eliminatiing the row/line after-image
without damaging the LED lamps
6. Energy saving :
low electric current,high-bright lamps,equipped eith PFC switching
power supply,save 30% electricity.
7. High refresh rate,high gray level :
if can reach 16bit by using PWM driving IC,refresh rate is more
than 4000HZ,the gray level is still high even under the condition
of low brightness.
8. Color correction : support dot-to-dot correction,guarantee the
consistence of LED color and brightness,No chromatic aberration for
new screens.
9. Dul back-up :
both power supply and system dual back-up are optional,reliable
performance.
Specification:
No. | part | project | P3.91 Indoor Floor Tile Screen |
1 | Pixel composition | Arrangement form | Vertical |
2 | Pixel tube spacing | 3.91mm |
3 | Pixel composition | 1R1G1B (three in one) |
4 | Lamp bead model | SMD1921 (chip ratio 3:6:1) |
5 | Physical density | 25600 dots/㎡ |
6 | Module/box size | Module size | 250 width x 250 height (mm) |
7 | Module resolution | 64 width x 64 height (dot) |
8 | Box size | 500 (width) × 1000 (height) mm |
9 | Box weight | 22.5KG/pc |
10 | Box thickness | 9cm (including module thickness) |
11 | Full screen parameters | Out of control point | ≤3/100000 |
12 | Unit module splicing seam | The size of the unit board gap splicing seam is the same, and ≤ 2mm |
13 | Optimal distance | 5-60m |
14 | Perspective | Horizontal 140°, vertical 140° |
15 | Surface roughness | Maximum error ≤ 2mm |
16 | Ink color on the screen surface | Consistent ink, no reflection |
17 | Uniformity | Module brightness is uniform, uniformity 1:1 |
18 | powered by | Use environment | Indoor and outdoor |
19 | Working humidity range | 10% to 90% RH |
20 | range of working temperature | -20 to 65 ℃ |
21 | Maximum power | 600W/㎡ |
22 | Average power | 300W/㎡ |
23 | Control System | Control host operating system | XP computer + control software and hardware + playback software and
hardware |
24 | way to control | Synchronize with computer VGA (display synchronization) |
25 | Control System | DVI graphics card + full color control card + optical fiber
transmission |
26 | input method | Computer and other peripherals, PAL/NTSC/SECAM, S-Video; VGA; RGB;
Composite Video; SDI, etc. |
27 | Screen function technical parameters | LED driver | Constant current drive (16 scans) |
28 | Computer display mode | 640×480, 800×600, 1024×768 |
29 | Refresh rate | 2000hz |
30 | Grayscale/color | Level 8192 |
31 | Whole screen brightness | 2000 cd/㎡ |
32 | Service life | More than 100,000 hours |
33 | Display content | Video DVD, VCD, TV, images, text, animation, and others. |
34 | Continuous trouble-free working time | ≥10000 hours |
25 | interface | Standard Ethemer network interface, communication adopts RS-422 |
36 | Communication medium, control distance | Multi-mode optical fiber <500m, single-mode optical fiber
transmission <30km, Category 5 cable <100m |
37 | Protection technology | Moisture-proof, dust-proof, anti-corrosion, anti-static,
anti-lightning, and has the functions of over-current,
short-circuit, over-voltage and under-voltage protection |
38 | software | General LED video playback software (conventional), |
Product Image:
Advantage:
1.Fully waterproof (can be washed directly with water), strong
shock resistance, good slip resistance (the actor can jump on it at
will, will not slip), the bearing capacity is large (the car can be
directly crushed, the load point is 2 tons), A single box can
fine-tune the height difference between the cabinets, the mask is
PC+ composite material, has anti-UV function, can be exposed to the
sun (the screen surface will not yellow), appearance beautiful,
high definition, high brightness, good heat dissipation, Easy to
install, soft and clear color.
2.One-screen multi-purpose: It can be used as color brick when
tiling; it can be used as stage main screen or color screen when
stacking or lifting.
3.This product can be upgraded to a sensor screen through sensor or
infrared technology to interact with the audience.
Feature:
1, Screen cabinet is made of die-casting aluminum material, The
effect of heat dissipation is remarkable.
2, Light weight, the weight of the cabinet is 12 kg; easy
installation.
3, The module can be quickly removed and easy to maintain.
4, Simply perfect appearance,cabinet is adopted die casting
moulding, high precision and can be realized fine adjustment.
5, Has a great universality and easy to upgrade.
Service:
OEM service
We make best design with high cost- efficiency according to the
actual needs of our customers.UOCOLOR has been focused on
international market since the beginning and develop products
strictly according to related standards and requirments of
different regions,to provide customers more value space.
On-site service
Upon the customers request,UOCOLOR can dispatch engineers to the
country for installation service.

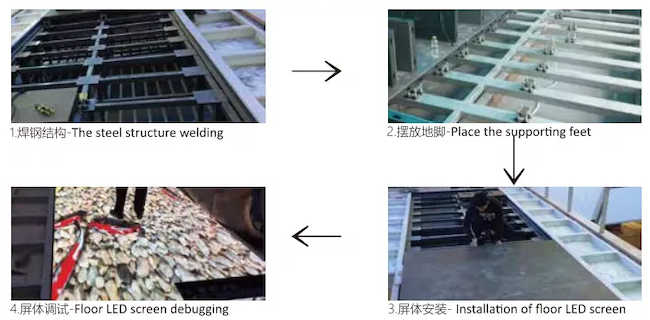

Installation of LED display frame,screen and control center
Cabling and power distribution
Site cleaning
System debugging,commissioning and test
After-sales service
Our after-sales engineers have been in LED field for more than 7
years who will give the customer the most professional guidance
about LED.
Repairing service.During the warranty period,we will repair the
equipment units free of charge unconditionally.
Software upgrading service.After our customer purchases our LED
display,we will also provide our customer with the service of
software upgrading free of charge.
FAQ:
Q1. What is the MOQ?
A: 1 pc panel, but we suggest to get a bigger video wall to check
better visual experience.
Q2. How do you protect the dance floor led display from damage by
dance and jump?
A: The LED lamp beads are treated with advanced gluing technology,
also the modules are covered by acrylic plates with a certain
thickness and strength, anti-scratch, anti-skidding.
Q3: How to control the display contents?
A: We use Novastar/Colorlight control system, use the HDMI to reach
sync. control.
Q4: If the floor is not flat, how to make sure the flatness of the
dance floor LED display?
A: The height of supporting legs at the bottom can be adjusted to
achieve good flatness .
Q5: Do you test your dance floor LED display?
A: Yes, we have 100% test for 72hrs before delivery..
