Outdoor Indoor Floor LED Display Screen Dance P3.91 Intelligent Interactive

Shenzhen Mannled Photoelectric Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Outdoor Indoor Floor LED Display Screen Dance P3.91 Intelligent Interactive from wholesalers

    Buy cheap Outdoor Indoor Floor LED Display Screen Dance P3.91 Intelligent Interactive from wholesalers
    • Buy cheap Outdoor Indoor Floor LED Display Screen Dance P3.91 Intelligent Interactive from wholesalers
    • Buy cheap Outdoor Indoor Floor LED Display Screen Dance P3.91 Intelligent Interactive from wholesalers

    Outdoor Indoor Floor LED Display Screen Dance P3.91 Intelligent Interactive

    Ask Lasest Price
    Brand Name : ledmanner
    Model Number : LM-FL3.91
    Certification : CE ROHS FCC
    Price : usd 600-2200/㎡
    Payment Terms : T/T
    Supply Ability : 1000㎡/week
    Delivery Time : 20days
    • Product Details
    • Company Profile

    Outdoor Indoor Floor LED Display Screen Dance P3.91 Intelligent Interactive

    Outdoor Indoor Dance P3.91 Intelligent Interactive Floor LED Display Screen


    Quick Details:

    ● Good heat disptach

    ● Cabinet is made of iron sheet

    ● Structure is stronger

    ● Ledmannner dance floor led display screen is not easy to scratch


    Description:

    1. Competitive price with high quality.

    2. The SMD three-in-one technology with high brightness makes the display has a ultra-wide view and smoother pictures when in use.

    3. Low power consumption and good performance of dissipating heat make it work normally in the condition of no air conditioning.


    Specification:

    No.

    part

    project

    3.91 Indoor Floor Tile Screen

    1

    Pixel composition

    Arrangement form

    Vertical

    2

    Pixel tube spacing

    3.91mm

    3

    Pixel composition

    1R1G1B (three in one)

    4

    Lamp bead model

    SMD1921 (chip ratio 3:6:1)

    5

    Physical density

    65536 dots/㎡

    6

    Module/box size

    Module size

    250 width x 250 height (mm)

    7

    Module resolution

    64 width x 64 height (dot)

    8

    Box size

    500 (width) × 1000 (height) mm

    9

    Box weight

    22.5KG/pc

    10

    Box thickness

    9cm (including module thickness)

    11

    Full screen parameters

    Out of control point

    ≤3/100000

    12

    Unit module splicing seam

    The size of the unit board gap splicing seam is the same, and ≤ 2mm

    13

    Optimal distance

    5-60m

    14

    Perspective

    Horizontal 140°, vertical 140°

    15

    Surface roughness

    Maximum error ≤ 2mm

    16

    Ink color on the screen surface

    Consistent ink, no reflection

    17

    Uniformity

    Module brightness is uniform, uniformity 1:1

    18

    powered by

    Use environment

    Indoor and outdoor

    19

    Working humidity range

    10% to 90% RH

    20

    range of working temperature

    -20 to 65 ℃

    21

    Maximum power

    600W/㎡

    22

    Average power

    300W/㎡

    23

    Control System

    Control host operating system

    XP computer + control software and hardware + playback software and hardware

    24

    way to control

    Synchronize with computer VGA (display synchronization)

    25

    Control System

    DVI graphics card + full color control card + optical fiber transmission

    26

    input method

    Computer and other peripherals, PAL/NTSC/SECAM, S-Video; VGA; RGB; Composite Video; SDI, etc.

    27

    Screen function technical parameters

    LED driver

    Constant current drive (16 scans)

    28

    Computer display mode

    640×480, 800×600, 1024×768

    29

    Refresh rate

    2000hz

    30

    Grayscale/color

    Level 8192

    31

    Whole screen brightness

    2000 cd/㎡

    32

    Service life

    More than 100,000 hours

    33

    Display content

    Video DVD, VCD, TV, images, text, animation, and others.

    34

    Continuous trouble-free working time

    ≥10000 hours

    25

    interface

    Standard Ethemer network interface, communication adopts RS-422

    36

    Communication medium, control distance

    Multi-mode optical fiber <500m, single-mode optical fiber transmission <30km, Category 5 cable <100m

    37

    Protection technology

    Moisture-proof, dust-proof, anti-corrosion, anti-static, anti-lightning, and has the functions of over-current, short-circuit, over-voltage and under-voltage protection

    38

    software

    General LED video playback software (conventional),

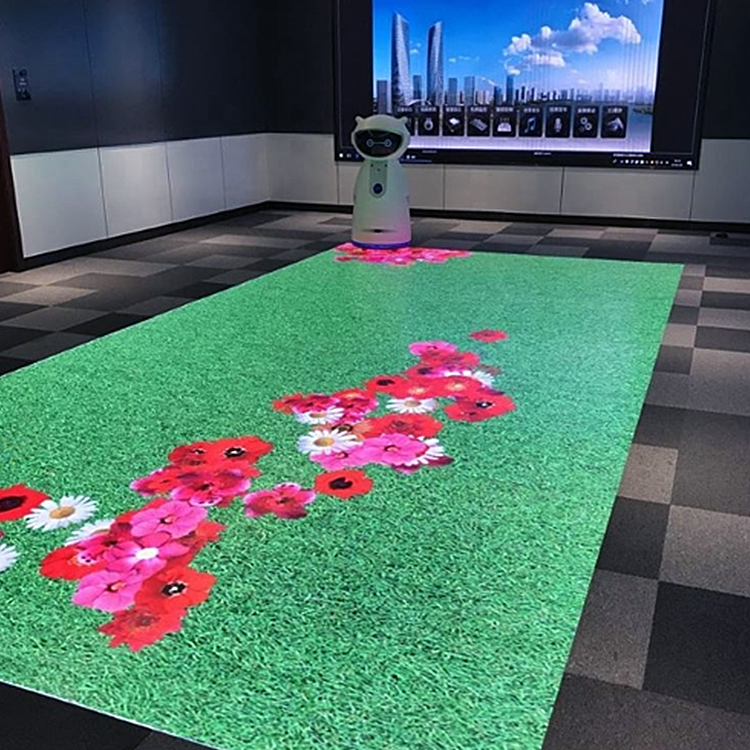

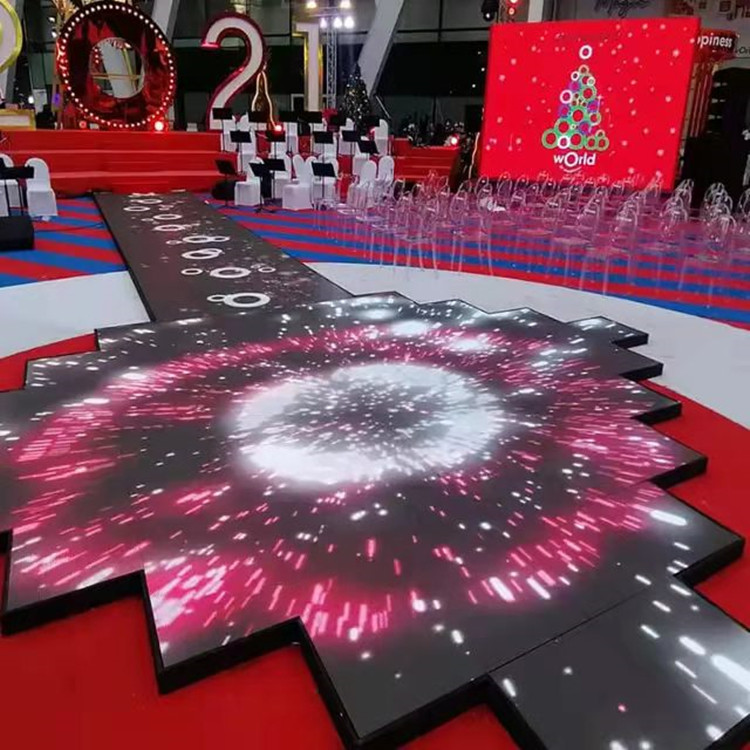

    Product Image:


    Features:

    1. Ultrathin and light weight :
    each cabinet weights only 12 kg,easy to install and transport.
    2. Noiseless :
    Die casting Aluminum cabinets,fanless design with noiseless power supply.
    3. Seamless :
    High precision CNC maching,precision up to 0.1mm
    4. Fast installation and dismanling :
    connection lock between cabients are patented,closely combined,safemreliable and adjustable,50 cabinets can be installed in one hour.
    5. Unique blanking circuit :
    high definition display by eliminatiing the row/line after-image without damaging the LED lamps
    6. Energy saving :
    low electric current,high-bright lamps,equipped eith PFC switching power supply,save 30% electricity.
    7. High refresh rate,high gray level :
    if can reach 16bit by using PWM driving IC,refresh rate is more than 4000HZ,the gray level is still high even under the condition of low brightness.
    8. Color correction : support dot-to-dot correction,guarantee the consistence of LED color and brightness,No chromatic aberration for new screens.
    9. Dul back-up :
    both power supply and system dual back-up are optional,reliable performance.


    Our Service:

    OEM service
    We make best design with high cost- efficiency according to the actual needs of our customers.UOCOLOR has been focused on international market since the beginning and develop products strictly according to related standards and requirments of different regions,to provide customers more value space.
    On-site service
    Upon the customers request, can dispatch engineers to the country for installation service.
    Installation of LED display frame,screen and control center
    Cabling and power distribution
    Site cleaning
    System debugging,commissioning and test
    After-sales service
    Our after-sales engineers have been in LED field for more than 7 years who will give the customer the most professional guidance about LED.
    Repairing service.During the warranty period,we will repair the equipment units free of charge unconditionally.
    Software upgrading service.After our customer purchases our LED display,we will also provide our customer with the service of software upgrading free of charge.

    Application:
    1. Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive.
    2. Information source can be camera, video, VCD, DVD, LD, TV and so on.
    3. Clear picture without flicker and distortion.
    4. Brightness, contrast, saturation can be adjust by itself and manual.
    5. Show everything with your PC does synchronously.
    6. Super correcting technology for distortion.
    7. One interface for sound signal and two for video signal at least.


    FAQ:

    Q: Are you trading company or manufacturer ?
    A: We are factory.

    Q: How long is your delivery time?
    A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

    Q: Do you provide samples ? is it free or extra ?
    A: it Depend on the sample type, we could offer the sample for free charge but do not pay the cost of freight.

    Q: What is your terms of payment ?
    A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
