    HD Shopping Mall Floor LED Display Screen Dance Game Indoor P3.91

    Ask Lasest Price
    Brand Name : ledmanner
    Model Number : LM-FL3.91
    Certification : CE ROHS FCC
    Price : usd 600-2200/㎡
    Payment Terms : T/T
    Supply Ability : 1000㎡/week
    Delivery Time : 20days
    • Product Details
    • Company Profile

    HD Shopping Mall Floor LED Display Screen Dance Game Indoor P3.91

    HD Indoor P3.91 Shopping Mall Dance Game Floor Tiles Floor LED Display Screen


    Quick Details:

    1. The first level LED chip from Taiwan Epistar
    2. With pure golden wire connection in LED
    3. Grand A row material for module frame and mask

    4. 4 layers PCB and copper plating thickness > 18mil
    5. Stainless steel screws when assembly
    6. Disassembly and assembly are quick and easy
    7. 3 to 5 years warranty


    Description:

    Digital displays around campus can be updated at the push of a button with emergency campus alerts,late-breaking game scores, or event information. Students, faculty and visitors receive the information and inspirationthey need in a format that is compelling and demonstrating technology leadership.


    Specification:

    No.

    part

    project

    3.91 Indoor Floor Tile Screen

    1

    Pixel composition

    Arrangement form

    Vertical

    2

    Pixel tube spacing

    3.91mm

    3

    Pixel composition

    1R1G1B (three in one)

    4

    Lamp bead model

    SMD1921 (chip ratio 3:6:1)

    5

    Physical density

    65536 dots/㎡

    6

    Module/box size

    Module size

    250 width x 250 height (mm)

    7

    Module resolution

    64 width x 64 height (dot)

    8

    Box size

    500 (width) × 1000 (height) mm

    9

    Box weight

    22.5KG/pc

    10

    Box thickness

    9cm (including module thickness)

    11

    Full screen parameters

    Out of control point

    ≤3/100000

    12

    Unit module splicing seam

    The size of the unit board gap splicing seam is the same, and ≤ 2mm

    13

    Optimal distance

    5-60m

    14

    Perspective

    Horizontal 140°, vertical 140°

    15

    Surface roughness

    Maximum error ≤ 2mm

    16

    Ink color on the screen surface

    Consistent ink, no reflection

    17

    Uniformity

    Module brightness is uniform, uniformity 1:1

    18

    powered by

    Use environment

    Indoor and outdoor

    19

    Working humidity range

    10% to 90% RH

    20

    range of working temperature

    -20 to 65 ℃

    21

    Maximum power

    600W/㎡

    22

    Average power

    400W/㎡

    23

    Control System

    Control host operating system

    XP computer + control software and hardware + playback software and hardware

    24

    way to control

    Synchronize with computer VGA (display synchronization)

    25

    Control System

    DVI graphics card + full color control card + optical fiber transmission

    26

    input method

    Computer and other peripherals, PAL/NTSC/SECAM, S-Video; VGA; RGB; Composite Video; SDI, etc.

    27

    Screen function technical parameters

    LED driver

    Constant current drive (16 scans)

    28

    Computer display mode

    640×480, 800×600, 1024×768

    29

    Refresh rate

    2000hz

    30

    Grayscale/color

    Level 8192

    31

    Whole screen brightness

    2000 cd/㎡

    32

    Service life

    More than 100,000 hours

    33

    Display content

    Video DVD, VCD, TV, images, text, animation, and others.

    34

    Continuous trouble-free working time

    ≥10000 hours

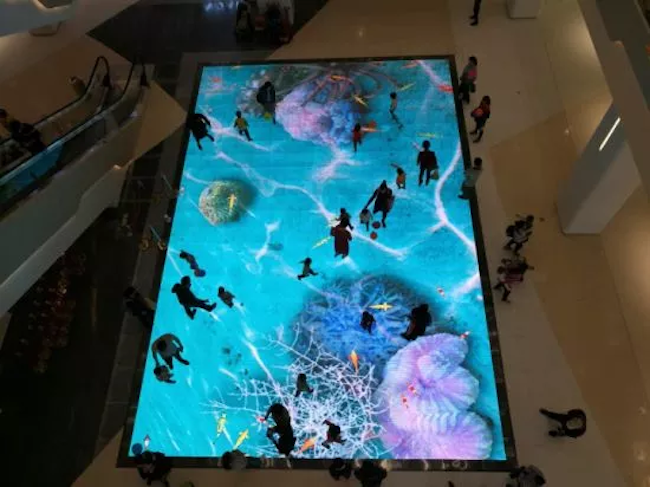

    Product Image:


    Features:

    1. Quick and flexible installation: direct installation without tools or rail mounting.

    2. High load-bearing performance: aluminum alloy material structure, bearing capacity of 1.5 tons / m2 or more.

    3. Excellent maintenance performance: can be directly exchanged without removing the adjacent cabinet

    4. High contrast design: technical design mask, clear play effect

    5. Excellent low-light and high-gray effect, showing uniform gray scale and good consistency


    Our services:

    Our company provides on site product installation, debugging and maintenance service for our LED display. Such as:

    1. After-sales service:

    1) Service principles: response in time, solve problems as soon as possible and ensure the use.

    2) Service period: In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.

    3) Service scope: If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.

    4) Under normal use and storage, Our Company will be responsible for the equipment.

    2. Pre-sales service:

    1) Our company can arrange professionals to conduct site installation and debugging in strict accordance with the requirements of the schemes and the original manual. If there is any special requirement, it is necessary to make changes of part installation scheme, we will coordinate with users. Our company can ensure the consistence of completion time and contracted time. Any problems caused by natural factors or man-made, we will discuss with client to find solutions.

    2) Our company can train the users based on the manual. The training include system use, system maintenance and equipment protection


    FAQ:

    Q1. Can I have a sample order for led Display?
    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


    Q2. What about the lead time?
    A:Sample needs 3-5 days, mass production time needs 10-15days for order quantity more than


    Q3. Do you have any MOQ limit for led light order?
    A: Low MOQ, 1pc for sample checking is available


    Q4. How do you ship the goods and how long does it take to arrive?

    A: We usually ship by sea because led display volume . It usually takes 20 days to arrive. Airline DHL, UPS, FedEx or TNT and sea shipping also optional.
