    Dance Floor Full Color LED Display Screen High Refresh 3D Sensitive

    Ask Lasest Price
    Brand Name : ledmanner
    Model Number : LM-FL6.25
    Certification : CE ROHS FCC
    Price : usd 600-2200/㎡
    Payment Terms : T/T
    Supply Ability : 1000㎡/week
    Delivery Time : 20days
    • Product Details
    • Company Profile

    Dance Floor Full Color LED Display Screen High Refresh 3D Sensitive

    High Refresh 3D Sensitive Dance Floor LED Panels Full Color Floor LED Display Screen


    Quick Details:

    ● Good heat disptach

    ● Cabinet is made of iron sheet

    ● Structure is stronger

    ● The load-bearing performance is high.

    ● Mask is shock-proof plastic, wear-resistant

    ● Ledmannner dance floor led display screen is not easy to scratch


    Description:

    Super load-bearing

    Each component of Ledmanner LED intelligent interactive floor tile screen is designed according to different mechanics, and the ultimate load-bearing capacity per square meter can be as high as 3 tons.


    Specification:

    No.

    part

    project

    P6.25 Indoor Floor Tile Screen

    1

    Pixel composition

    Arrangement form

    Vertical

    2

    Pixel tube spacing

    6.25mm

    3

    Pixel composition

    1R1G1B (three in one)

    4

    Lamp bead model

    SMD1921 (chip ratio 3:6:1)

    5

    Physical density

    25600 dots/㎡

    6

    Module/box size

    Module size

    250 width x 250 height (mm)

    7

    Module resolution

    40 width x 40 height (dot)

    8

    Box size

    500 (width) × 1000 (height) mm

    9

    Box weight

    22.5KG/pc

    10

    Box thickness

    9cm (including module thickness)

    11

    Full screen parameters

    Out of control point

    ≤3/100000

    12

    Unit module splicing seam

    The size of the unit board gap splicing seam is the same, and ≤ 2mm

    13

    Optimal distance

    5-60m

    14

    Perspective

    Horizontal 140°, vertical 140°

    15

    Surface roughness

    Maximum error ≤ 2mm

    16

    Ink color on the screen surface

    Consistent ink, no reflection

    17

    Uniformity

    Module brightness is uniform, uniformity 1:1

    18

    powered by

    Use environment

    Indoor and outdoor

    19

    Working humidity range

    10% to 90% RH

    20

    range of working temperature

    -20 to 65 ℃

    21

    Maximum power

    600W/㎡

    22

    Average power

    300W/㎡

    23

    Control System

    Control host operating system

    XP computer + control software and hardware + playback software and hardware

    24

    way to control

    Synchronize with computer VGA (display synchronization)

    25

    Control System

    DVI graphics card + full color control card + optical fiber transmission

    26

    input method

    Computer and other peripherals, PAL/NTSC/SECAM, S-Video; VGA; RGB; Composite Video; SDI, etc.

    27

    Screen function technical parameters

    LED driver

    Constant current drive (16 scans)

    28

    Computer display mode

    640×480, 800×600, 1024×768

    29

    Refresh rate

    2000hz

    30

    Grayscale/color

    Level 8192

    31

    Whole screen brightness

    2000 cd/㎡

    32

    Service life

    More than 100,000 hours

    33

    Display content

    Video DVD, VCD, TV, images, text, animation, and others.

    34

    Continuous trouble-free working time

    ≥10000 hours

    25

    interface

    Standard Ethemer network interface, communication adopts RS-422

    36

    Communication medium, control distance

    Multi-mode optical fiber <500m, single-mode optical fiber transmission <30km, Category 5 cable <100m

    37

    Protection technology

    Moisture-proof, dust-proof, anti-corrosion, anti-static, anti-lightning, and has the functions of over-current, short-circuit, over-voltage and under-voltage protection

    38

    software

    General LED video playback software (conventional),

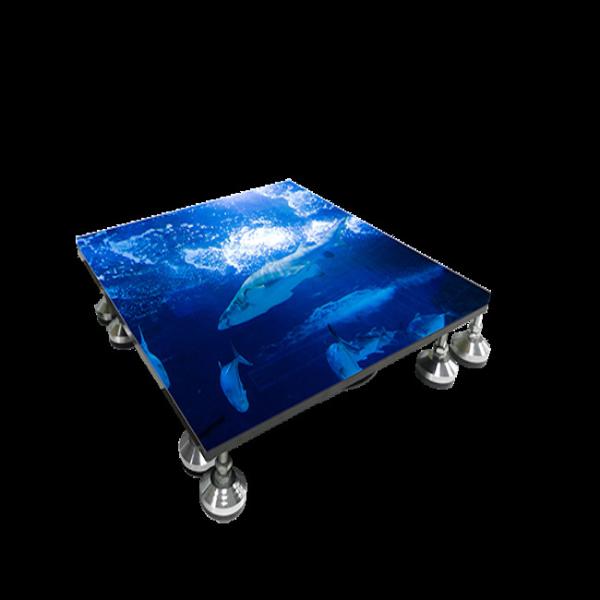

    Product Image:

    Advantage:

    1.Fully waterproof (can be washed directly with water), strong shock resistance, good slip resistance (the actor can jump on it at will, will not slip), the bearing capacity is large (the car can be directly crushed, the load point is 2 tons), A single box can fine-tune the height difference between the cabinets, the mask is PC+ composite material, has anti-UV function, can be exposed to the sun (the screen surface will not yellow), appearance beautiful, high definition, high brightness, good heat dissipation, Easy to install, soft and clear color.

    2.One-screen multi-purpose: It can be used as color brick when tiling; it can be used as stage main screen or color screen when stacking or lifting.

    3.This product can be upgraded to a sensor screen through sensor or infrared technology to interact with the audience.


    FAQ:

    Q1. Can I have a sample order for led module?
    A: Yes, we accept sample order to test and check the quality. Mixed samples are acceptable.

    Q2. How do you ship the goods and how long does it take to arrive?
    A: We usually ship by Sea, if small order will ship by DHL, UPS, FedEx or TNT(Depends on customers' requested) .

    Q3. Is it OK to print my logo on product?
    A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
