    500x1000mm Floor LED Display Screen Full Color Indoor Dance P4.8mm

    Ask Lasest Price
    Brand Name : ledmanner
    Model Number : LM-F4.8
    Certification : CE ROHS FCC
    Price : usd 600-2200/㎡
    Payment Terms : T/T
    Supply Ability : 1000㎡/week
    Delivery Time : 20days
    • Product Details
    • Company Profile

    500x1000mm Floor LED Display Screen Full Color Indoor Dance P4.8mm

    500*1000mm Full Color Indoor Floor LED Display Screen P4.8mm


    Quick Details:

    1. The first level LED chip from Taiwan Epistar
    2. With pure golden wire connection in LED
    3. Grand A row material for module frame and mask

    4. 4 layers PCB and copper plating thickness > 18mil
    5. Stainless steel screws when assembly
    6. Disassembly and assembly are quick and easy
    7. 3 to 5 years warranty

    8 .Energy-saving 60% : driving with low frequency current, heat-dissipated roller fans with automatic temperature-controlling device.

    9 .Life time >11 years;


    Description:

    Ledmanner stage dance floor led display screen adopts the design concept of flame retardant and anti-skid, which can be used in different indoor and outdoor environments. It can be used as a stage or as an auto show. At the same time, it can be designed according to the most popular virtual VR studio system, used in movie studio scenes, etc.


    Specification:

    TypeIndoor
    Pixel Pitch4.8
    Pixel Density43264 Pixel/sqm
    Pixel ConfigurationSMD2121
    Module Size(mm)250*250mm
    Module Resolution52*52dots
    Cabinet Size(mm)500*500mm
    Cabinet Resolution104*104dots
    Total QTY Module Per Cabinet2*2/ 2*4
    Cabinet Weight23kg
    Cabinet MateriaDiecasting Aluminum
    Input Voltage100-240 AC, 50/60HZ
    Max Power Consumption500w/sqm
    Avg. Power Consumption310w/sqm
    BrightnessOutdoor: 4500cd/sqm
    Brightness UniformityLuminance Discrepancy<5%
    Best Viewing AngleHorizontal: 140°
    Temperature RangeWorking: -20℃~60℃
    Operating Humidity10%-90%
    Ingression Protection GradeIP43
    Pressure2.5t/sqm
    Scaning Mode1/16scan
    Refresh Frequency> 3840HZ, Adjustable
    Signal InputDVI, Composite Video For Live Video
    Supported NetworkingThrough LAN/WAN, RS 232/RS 485
    Controllerlinsn

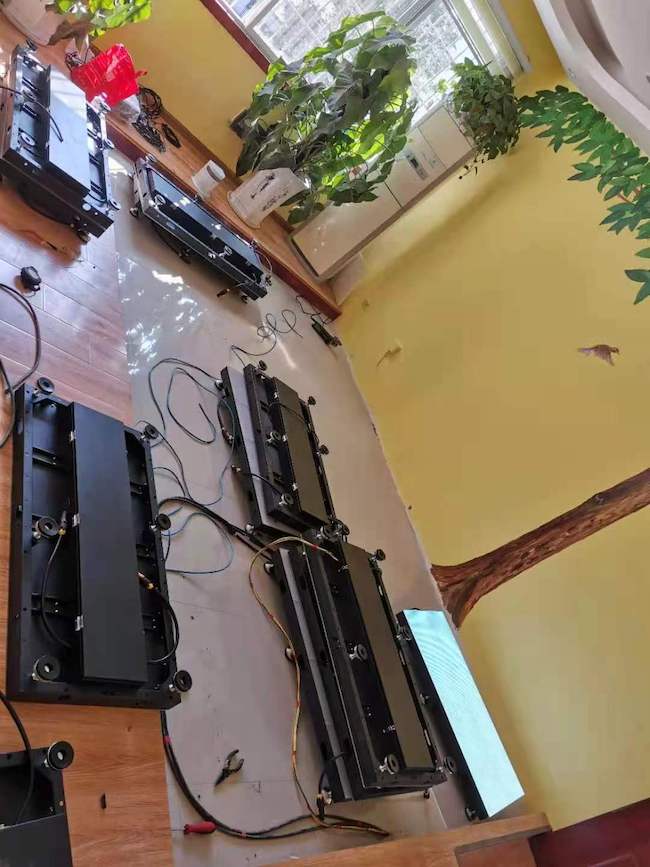

    Product Image:


    Our service:

    1. OEM Manufacturing welcome: Product, Package...
    2. Sample order
    3. We will reply you for your inquiry in 24 hours.
    4. After sending, we will track the products for you once every two days, until you get the products. When you got thegoods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offerthe solve way for you.


    FAQ:

    Q5. How to proceed an order for led Dispaly?
     A: Firstly let us know your requirements or application.
      Secondly We quote according to your requirements or our suggestions.
      Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.


    Q6. Is it OK to print my logo on led light product?

     A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.


    Q7: Do you offer guarantee for the products?
     A: Yes, we offer 3-5 years warranty to our products.


    Q8: How to deal with the faulty?

    A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
    Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
