P2.5 Curve Flexible Portable Digital Advertising Board Flexible Led
Display Screens
Features:
1. Full color by filling the whole of imported silica gel, which
makes our products in water, antifreeze, superior high-temperature
side
2. After a dustproof and waterproof tested to reach its target IP65
3. All modules are cross color enhancing, and the edge compression
is strong, not deformation, the flatness of display cabinet will be
better.
4. The box with a sliding iron top, bottom chute, and optional
locking device to fine-tune the gap and ensure seamless between the
boxes. Please do not squeeze the entire screen which ensure good
surface smoothness
5. Measured by the Shenzhen Institute of Quality Inspection Bureau
U.S. core companies of the outdoor full color display for
temperature impact test, the results showed that: outdoor full
color display can use the power normally under the temperature at
-25 °C to +75 °C
Advantage:
Flexible Led Display Screens is ultra-light weight, semi-transparent, rollable, LED video
display suitable for both indoor and outdoor applications. It’s
specially designed for both backdrop applications and creative LED
designs. The soft LED screen is ultra-slim and ultra-lightweight,
and increased design opportunities and lowered transportation
costs. The soft LED screen adopts high quality LED and chip, the
refresh frequency is super high as above 1000Hz, which ensures no
flicker or black strip and no image distortion.
Specification:
| Model | flexible led display screens |
| Pixel pitch (mm) | 2.5 |
| Configuration | SMD2121 |
| Module dimension (mm) | 320 x160 |
| Module resolution(dots) | 128x 64 |
| Module weight(kg) | 0.28 |
| Pixel density(dots/㎡) | 160000 |
| Flatness error(mm) | ≤0.1 |
| Viewing angle(°) | 140/140(Horizontal/Vertical) |
| Brightness(cd/㎡) | ＜1000 |
| Brightness adjustment | 256 levels by software |
| Contrast | 4000:1 |
| Repetition frequency(Hz) | 50/60 |
| Refresh frequency(Hz) | ≥1920 |
| Gray scale(bit) | 14bit |
| Ave. power(W/㎡) | 275 |
| Max power(W/㎡) | 550 |
| Working temp./humidity | -20~45℃/10%~80%RH |
| Storing temp./humidity | -30~60℃/10%~85%RH |
| Scanning | 1/43S |
| Power requirements | AC90~264V, 47~63Hz |
| Signal Transmission Distance | CAT cable:<100m; Single mode fiber:<10km |
| Installation type | Fix and rental |
| Life time(hrs) | 100,000 |
| Data input | RF,S-Video,RGB, RGBHV,YUV,YC,COMPOSITION etc. |
| Module material | Flexible PCB + hard board(FPC+FR-4) |
| Certificate | CCC/TUV-CE/Rohs, etc. |

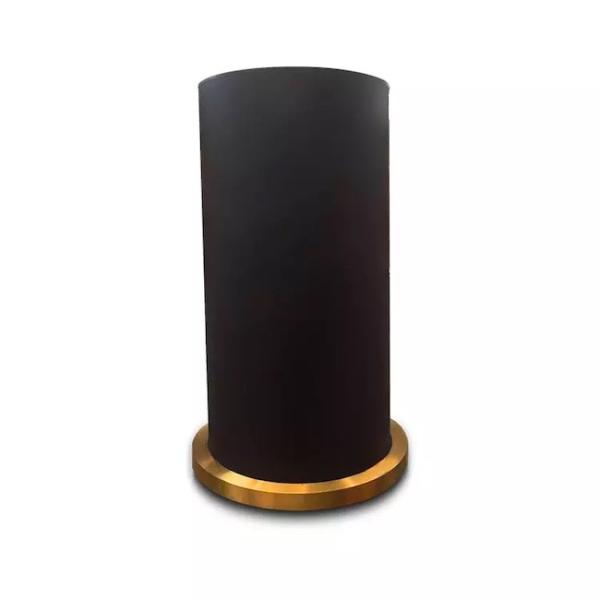

Product Image:
Service:
Pre-sales service :
Our team design and make solutions based on different requirements
from different customers, what you think is what we can do.
After-sales services:
1. We provide customer service through Skype, phone or email,
supply you video or drawing to solve problems.
2. We provide remote control service through internet to achieve
real time service, which will short time of solving problems.
3. We provide one professional engineer to one customer to keep
fastly reply.
Installation Service:
1. We provide detailed CAD drawing to customer for preparing metal
structure.
2. We could dispatch our engineer to your place , guide
installation and free training.
3. Special designs have special solutions; we will make perfect
solutions to satisfy all customers' requirements.
Description:
>> Best equality, commendably solve the problem of the
mosaic, have the excellent consistency of light.
>> To picture, video and character, have clear, exquisite and
real display effects.
>> Can repair each led lamp, so the cost of maintenance is
lower, and easy to repair.
Why choose us?
1. High quality:100% tested before shipping, Best quality LED chip
tube the CREE, SILAN, OPTO, EPISTAR assuring high brightness and
long life span. industry-leading
2. Strong productivity:50000 pieces per month, Shorter delivery
time
3. Good price:our price is 10% lower than the market because of the
introduction of full
automatic production line with the characteristics of reducing the
cost of labor and management.
FAQ:
Q1: Are you a manufacturer or trading company?
A1: We are a Professional OEM/ODM manufacturer which has
specialized in led display industry for more than 17 years.
Q2: How does your factory do regarding quality control?
A2: Quality is priority.Brighter people always attach great
importance to quality controlling from the very beginning to the
very end. We focus on every detail,Our factory has gained ISO9001,
ISO14001, CE, RoHS ,FCC authentication.
Q3: What is your MOQ?
A3: Any quantity is acceptable for your order. And the price is
negotiable for large quantity.
Q4: When will you make the delivery?
A4: We can make the delivery within 3-5 working days for the led
modules and 10-12days for the led finished screen according to the
size and quantities of your order.
