    Commercial Smart Rollable Flexible Video Screen High Resolution

    Ask Lasest Price
    Brand Name : ledmanner
    Model Number : P2
    Certification : CE ROHS FCC
    Price : RMB3500-8000/㎡
    Payment Terms : T/T
    Supply Ability : 1000㎡/week
    Delivery Time : 20days
    • Product Details
    • Company Profile

    Commercial Smart Rollable Flexible Video Screen High Resolution

    Commercial High Resolution Complete Poster Smart Rollable Flexible Led Display Screens


    Quick Details:

    *Easy Installation and Disassembly
    *Light Weight
    *Magnetically Fixed or Screwed


    Advantage:

    1. Full color by filling the whole of imported silica gel, which makes our products in water, antifreeze, superior high-temperature side

    2. After a dustproof and waterproof tested to reach its target IP65

    3. All modules are cross color enhancing, and the edge compression is strong, not deformation, the flatness of display cabinet will be better.

    4. The box with a sliding iron top, bottom chute, and optional locking device to fine-tune the gap and ensure seamless between the boxes. Please do not squeeze the entire screen which ensure good surface smoothness

    5. Measured by the Shenzhen Institute of Quality Inspection Bureau U.S. core companies of the outdoor full color display for temperature impact test, the results showed that: outdoor full color display can use the power normally under the temperature at -25 °C to +75 °C


    Specification:

    Item

    Indoor P2.5

    Indoor P4

    Indoor P5


    Module

    Panel Dimension

    320mm(W) * 160mm(H)

    320mm(W) * 160mm(H)

    320mm(W) * 160mm(H)

    Pixel pitch

    2.5mm

    4mm

    5mm

    Pixel Density

    160000 dot/m2

    62500 dot/m2

    40000 dot/m2

    Pixel configuration

    1R1G1B

    1R1G1B

    1R1G1B

    LED specification

    SMD2121

    SMD2121

    SMD3528 / 2121

    Pixel resolution

    128 dot * 64 dot

    80 dot * 40 dot

    64 dot * 32 dot

    Average power

    30W

    26W

    15W/24W

    Panel weight

    0.39KG

    0.3KG

    0.33KG


    Cabinet

    Cabinet size

    640mm*640mm*85mm

    960mm*960mm*85mm

    640mm*640mm*85mm,

    960mm*960mm*85mm

    Cabinet Resolution

    256 dot * 256 dt

    240 dot * 240 dot

    128 dot * 128 dot, 192 dot*192 dot

    Quantity of panel

    8pcs

    18pcs

    8pcs, 18pcs

    Hub connecting

    HUB75-E

    HUB75-E

    HUB75-E

    Best viewing angle

    140/120

    140/120

    140/120

    Best viewing distance

    2-30M

    4-30M

    5-30M

    Operating temperature

    -10C°~45C°

    -10C°~45C°

    -10C°~45C°

    Screen power supply

    AC110V/220V - 5V60A

    AC110V/220V - 5V60A

    AC110V/220V - 5V60A

    Max power

    780 W/m2

    700 W/m2

    750W/m2

    Average power

    390 W/m2

    350 W/m2

    375W/m2


    Technical

    Signal Index

    Driving IC

    ICN 2037 / 2153

    ICN 2037 / 2153

    ICN 2037 / 2153

    Scan Rate

    1/32S

    1/20S

    1/16S

    Refresh frepuency

    1920-3300 HZ/S

    1920-3840 HZ/S

    1920-3840 HZ/S

    Display color

    4096*4096*4096

    4096*4096*4096

    4096*4096*4096

    Brightness

    800-1000 cd/m2

    800-1000 cd/m2

    900-1100 cd/m2

    Life span

    100000Hours

    100000Hours

    100000Hours

    Control distance

    <100M

    <100M

    <100M

    Operating Humidity

    10-90%

    10-90%

    10-90%

    IP protective index

    IP43

    IP43

    IP43

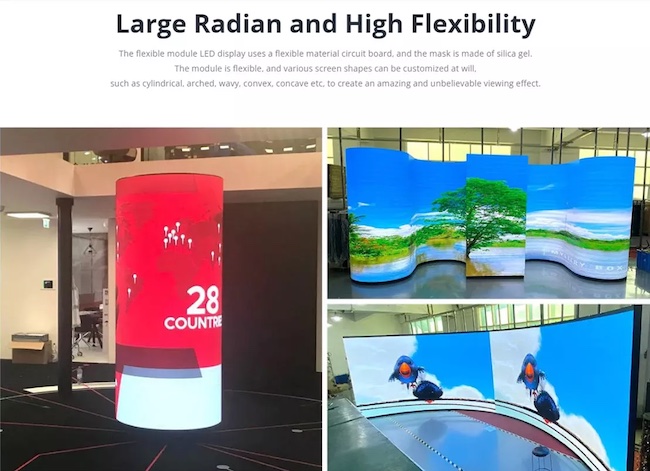

    Product Image:


    Features:

    1. SMD3-IN-1 technology are used for indoor LED display
    2. wide view angle:140 inhorizonal and 140 in vertical
    3. special design and advanced SMT technology improves the heat dissipation
    4. with high fresh rate controller, guarantee that no scan line when taking photos
    5. regular shape and special shape(such as curve,round) can be designed


    Description:

    >> Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light.

    >> To picture, video and character, have clear, exquisite and real display effects.

    >> Can repair each led lamp, so the cost of maintenance is lower, and easy to repair.


    Service:

    1. Warranty

    1) We provide warranty of all components for 3 full years. During this time, we will replace or repair our goods for free if there is something wrong with them.

    2) We will provide maintenance for a lifetime and charge for the raw materials only.

    2. Technology Training

    1) We provide the technology training for free, which contains the operation training and maintenance

    2) training in the factory.

    3) We will send our engineers to your country by negotiation.

    3. Maintenance and Consultation

    1) We provide full maintenance for a lifetime and charge for the raw materials only.

    2) We also provide lifetime consultation by E-mail, Skype, WhatsApp or other ways for free.

    Trade Terms

    1. Packing: Anti-shaking wooden cabinet /Air flight case/carton.

    2. Shipping port: Shenzhen. China.

    3. Shipping freights are quoted according to your requests.

    4. Delivery time:5-15 working days.

    5. 2 years warranty ,lifelong maintaining. In the Maintenance period, free of all maintenance charges. After Maintenance period,only charge the material costs fees.


    FAQ:

    Q1. Can I have a sample order for this products?
    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

    Q2. What about the lead time?
    A:Production time needs about 15 working days for order quantity more than 6 sqm.

    Q3. Do you have any MOQ limit for LED screen order?
    A: Low MOQ, 1pc for sample checking is available, and Normal order's MOQ is6 pcs cabinet

    Q4. How do you ship the goods and how long does it take to arrive?
    A: By express is the fastest but most expensive.

    By airplan also need about 7 days , middle cost.

    By sea is the most economic but will take 20-30 days transit time. Small order Express is a good solution, Big order always by sea.
