P2 Curve Flexible Portable Digital Advertising Board Flexible Led
Display Screens
Advantage:
Flexible Led Display Screens is ultra-light weight, semi-transparent, rollable, LED video
display suitable for both indoor and outdoor applications. It’s
specially designed for both backdrop applications and creative LED
designs. The soft LED screen is ultra-slim and ultra-lightweight,
and increased design opportunities and lowered transportation
costs. The soft LED screen adopts high quality LED and chip, the
refresh frequency is super high as above 1000Hz, which ensures no
flicker or black strip and no image distortion.
Features:
- Can bent into irregular shapes flexibly
- Can be round, arc, waving,,, and other shapes
- Color your stage and make more choice except standard screens
Specification:
| Model | flexible led display screens |
| Pixel pitch (mm) | 2.0 |
| Configuration | SMD1515 |
| Module dimension (mm) | 320 x160 |
| Module resolution(dots) | 160x 80 |
| Module weight(kg) | 0.28 |
| Pixel density(dots/㎡) | 250000 |
| Flatness error(mm) | ≤0.1 |
| Viewing angle(°) | 140/140(Horizontal/Vertical) |
| Brightness(cd/㎡) | ＜1000 |
| Brightness adjustment | 256 levels by software |
| Contrast | 4000:1 |
| Repetition frequency(Hz) | 50/60 |
| Refresh frequency(Hz) | ≥1920 |
| Gray scale(bit) | 16 |
| Ave. power(W/㎡) | 275 |
| Max power(W/㎡) | 550 |
| Working temp./humidity | -20~45℃/10%~80%RH |
| Storing temp./humidity | -30~60℃/10%~85%RH |
| Scanning | 1/20 |
| Power requirements | AC90~264V, 47~63Hz |
| Signal Transmission Distance | CAT cable:<100m; Single mode fiber:<10km |
| Installation type | Rental / Fix |
| Life time(hrs) | 100,000 |
| Data input | RF,S-Video,RGB, RGBHV,YUV,YC,COMPOSITION etc. |
| Module material | Flexible PCB + hard board(FPC+FR-4) |
| Certificate | CCC/TUV-CE/Rohs, etc. |

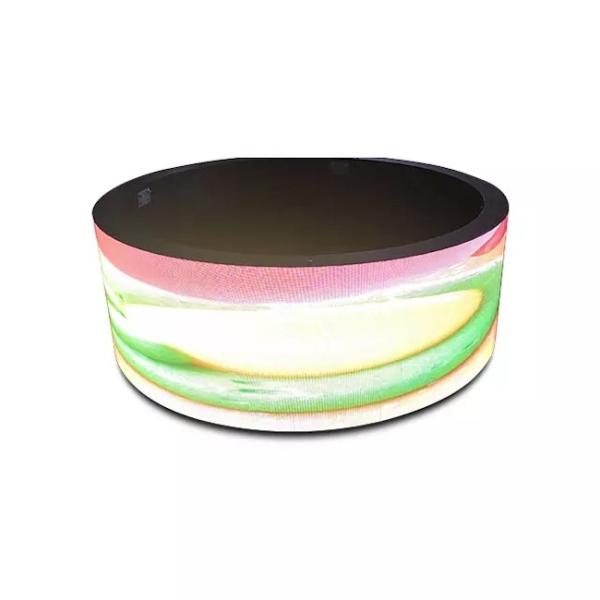

Product Image:
Description:
1. Light weight: it can be loaded by one person, quick assembling,
quick maintain, reduce. carrying, save costs.
2. Thin cabinet:the thickness is only 6.5 CM, the space of the
screen is small , and the entire screen will be more beautiful.
3. Flat screen:smooth surface error is under 0.2cm, it can remove
the mosaic phenomenon .effectively. The effect of the display will
be more clear and exquisite.
4. Quick dismounting:adopt fast locking structure connected, firm,
quick, beautiful.
Service:
1) Reply your inquiry in 24 working hours.
2) Experienced staffs answer all your query in fluent
English,Spanish,French,German etc
3) Customized design is available,OEM & ODM are welcomed.
4) Exclusive and unique solution can be provided to our customer by
our well-trained and professional engineers and staffs.
5) Special discount and protection of sales area provided to our
distributor.
6) Warmly welcome your visit in our company if available.
7) Warranty: 24 months, a little investment for longer warranty
time.
Technology Training
1. We provide the technology training for free, which contains the
operation training and maintenance training in the factory.
2. We will send our engineers to your country by negotiation.
FAQ:
Q1: Are you a manufacturer or trading company?
A1: We are a Professional OEM/ODM manufacturer which has
specialized in led display industry for more than 17 years.
Q2: How does your factory do regarding quality control?
A2: Quality is priority.Brighter people always attach great
importance to quality controlling from the very beginning to the
very end. We focus on every detail,Our factory has gained ISO9001,
ISO14001, CE, RoHS ,FCC authentication.
Q3: What is your MOQ?
A3: Any quantity is acceptable for your order. And the price is
negotiable for large quantity.
Q4: When will you make the delivery?
A4: We can make the delivery within 3-5 working days for the led
modules and 10-12days for the led finished screen according to the
size and quantities of your order.
