Soft Indoor 1.8mm Advertising Curve And Flexible Led Display
Screens
Features:
Modular small-unit and flexible design,makes possiblity of more
complicated shapes of video show.
Assembling screen with modules directly,saving time and effort,easy
operation.
Magnet connection,apt to assemble & disassemble,maintain & replace.
No metal frame design, greatly reduce the screen weight.
Strict quality control and long-term application experience
verified the stablity and excellent performance.

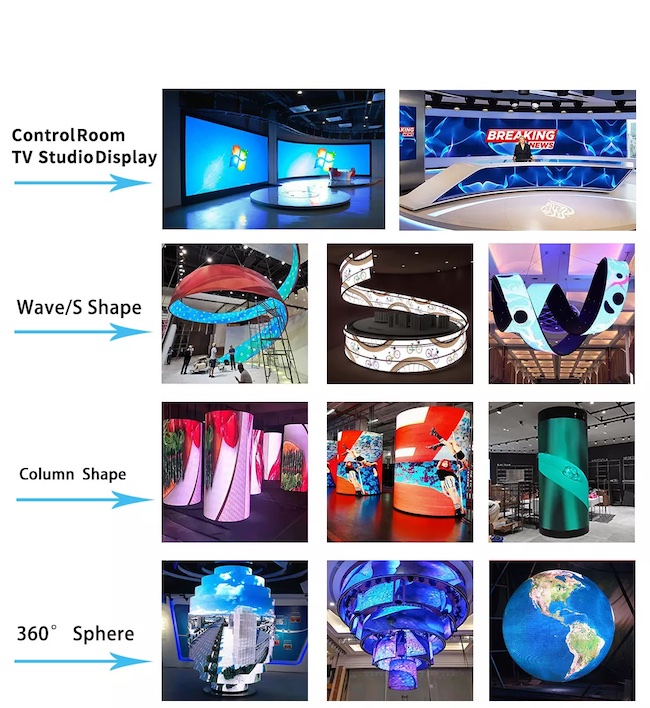

Widely applied in shaped stage background/exhibition/shopping mall
etc.
Description:
1. Light weight: it can be loaded by one person, quick assembling,
quick maintain, reduce. carrying, save costs.
2. Thin cabinet:the thickness is only 6.5 CM, the space of the
screen is small , and the entire screen will be more beautiful.
3. Flat screen:smooth surface error is under 0.2cm, it can remove
the mosaic phenomenon .effectively. The effect of the display will
be more clear and exquisite.
4. Quick dismounting:adopt fast locking structure connected, firm,
quick, beautiful.
Specification:
| Model | flexible led display screens |
| Pixel pitch (mm) | 1.86 |
| Configuration | SMD1010 |
| Module dimension (mm) | 320 x160 |
| Module resolution(dots) | 172x 86 |
| Module weight(kg) | 0.28 |
| Pixel density(dots/㎡) | 289444 |
| Flatness error(mm) | ≤0.1 |
| Viewing angle(°) | 140/140(Horizontal/Vertical) |
| Brightness(cd/㎡) | ＜1000 |
| Brightness adjustment | 256 levels by software |
| Contrast | 4000:1 |
| Repetition frequency(Hz) | 50/60 |
| Refresh frequency(Hz) | ≥600 |
| Gray scale(bit) | 16 |
| Ave. power(W/㎡) | 275 |
| Max power(W/㎡) | 550 |
| Working temp./humidity | -20~45℃/10%~80%RH |
| Storing temp./humidity | -30~60℃/10%~85%RH |
| Scanning | 1/32S |
| Power requirements | AC90~264V, 47~63Hz |
| Signal Transmission Distance | CAT cable:<100m; Single mode fiber:<10km |
| Installation type | Fix |
| Life time(hrs) | 100,000 |
| Data input | RF,S-Video,RGB, RGBHV,YUV,YC,COMPOSITION etc. |
| Module material | Flexible PCB + hard board(FPC+FR-4) |
| Certificate | CCC/TUV-CE/Rohs, etc. |
Product Image:
Advantage:
1. Competitive price with high quality.
2. The SMD three-in-one technology with high brightness makes the
display has a ultra-wide view and smoother pictures when in use.
3. Low power consumption and good performance of dissipating heat
make it work normally in the condition of no air conditioning.
Service:
(i) Warranty is for 2 years.
In the warranty period, we will maintain and replace the defect
components for free without any man-made damage, but you should pay
for shipping fee, both back and forth .After 2 years, we only
charge the material cost, you should be responsible for shipment.
(ii) Free training: You can send your engineers to our factory for
one week free of charge training, which includes the software
operation, installation, adjustment, basic repairing, etc.
(iii) Technical Support: If needed, we can send our engineer to
guide the installation for you. But the relevant cost should be
paid by your company such as visa, hotel, food, both trip plane
ticket, and also USD150/day/staff (from our engineer’s departure
from Shenzhen) and help to arrange our staff's visa.
Packing & Delivery
For Iron cabinet of indoor and outdoor LED display screens, we use
wooden case to pack,
For die-casting aluminum cabinet of LED rental stage display
screen, we use flight case to pack.
One wooden case include 2 cabinets, one flight case include 6 die
casting aluminum cabinets
By air or by sea! FOB or CIF
FAQ:
Q1: When will you make the delivery?
A1: We can make the delivery within 3-5 working days for the led
modules and 10-12days for the led finished screen according to the
size and quantities of your order.
Q2: What technical supports can you offer?
A2: We provide all kinds of technology trainings for free,
including the operation and maintenance training of the LED screens
in our factory. we can send an engineer team to the country of the
customer to instruct the installation.
Q3: How long is the warranty?
A3: The standard warranty is 1 year. It could be longer upon
request.
Q4: Do you provide any free spare parts in each order?
A4: Yes, a certain amount of spare parts will be provided for free,
spare parts including module, power cable,signal cable, LED lamp,
IC, mask, power supply, receiving card, etc.
