P4 Video Wall Curve Modules Cylinder Flexible Led Display Screens
Quick Details:
* High Resolution. 62500 pixels per sqm. 4 to 100 meters from the
screen visual distance can obtain excellent viewing effect.
* Extra Long Life. Epistar Chip, NationStar led lamps and MBI
5124IC.
* Easy Operation. The simple structure and easy operation enable
clients to save money, labor and worries.
* Widely Applications: commercial dining, glasses shop, sports,
transportation, special places, theme parks, etc,.
Feature:
● Large Radian and High Flexibility
● Ultra-thin And Ultra-light
● Simple And Quick Installation
● Magnetic Front Service Design
● Higher Contrast Ratio And Definition
● Customized Shape, Wide Application
Specification:
| Model | flexible led display screens |
| Pixel pitch (mm) | 4 |
| Configuration | SMD2121 |
| Module dimension (mm) | 320*160 |
| Module resolution(dots) | 80x 40 |
| Module weight(kg) | 0.28 |
| Pixel density(dots/㎡) | 62500 |
| Flatness error(mm) | ≤0.1 |
| Viewing angle(°) | 140/140(Horizontal/Vertical) |
| Brightness(cd/㎡) | ＜1200 |
| Brightness adjustment | 256 levels by software |
| Contrast | 4000:1 |
| Repetition frequency(Hz) | 50/60 |
| Refresh frequency(Hz) | ≥1920 |
| Gray scale(bit) | 16bit |
| Ave. power(W/㎡) | 275 |
| Max power(W/㎡) | 550 |
| Working temp./humidity | -20~45℃/10%~80%RH |
| Storing temp./humidity | -30~60℃/10%~85%RH |
| Scanning | 1/26S |
| Power requirements | AC90~264V, 47~63Hz |
| Signal Transmission Distance | CAT cable:<100m; Single mode fiber:<10km |
| Installation type | Fix and rental |
| Life time(hrs) | 100,000 |
| Data input | RF,S-Video,RGB, RGBHV,YUV,YC,COMPOSITION etc. |
| Module material | Flexible PCB |
| Certificate | CCC/TUV-CE/Rohs, etc. |

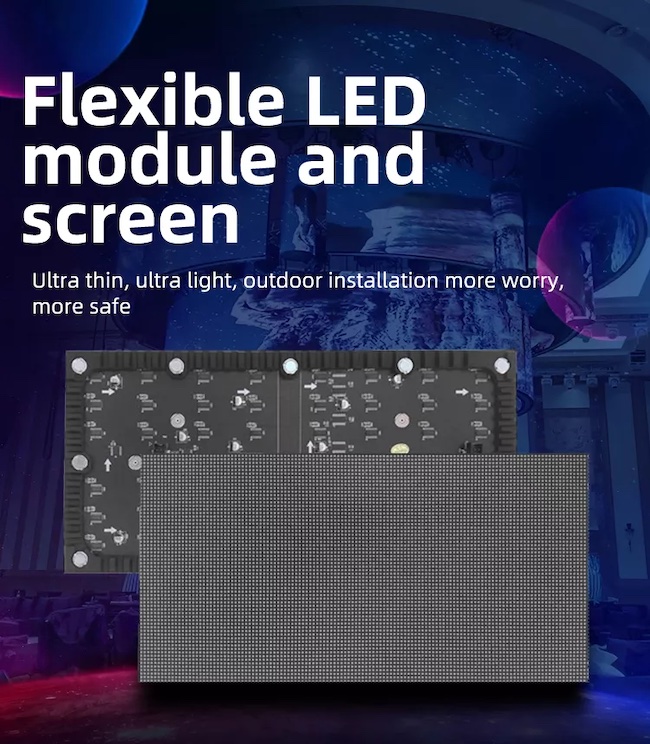

Product Image:
Description:
>> Best equality, commendably solve the problem of the
mosaic, have the excellent consistency of light.
>> To picture, video and character, have clear, exquisite and
real display effects.
>> Can repair each led lamp, so the cost of maintenance is
lower, and easy to repair.
Advantage:
Flexible and bendable
The flexible chassis and soft cover design enable user to bend it
freely, so it can be assembled at any any uneven or irregular
locations.
Super thin and light
MANNLED Flexible LED Sign is one of the thinnest & lightest LED
signs in the world with special materials and advanced technology.
Every module is only 9mm thick and has a weight of 280g.
Very easy to splice, install and maintain
Modularization design and no other connected cables make the
installation so easy.
User just mounts iron sheet or magnetic product on the surface in
the first, then stick
the Flexible LED sign on the surface .
High brightness
MANNLED Flexible LED Sign makes use of the high-brightness SMD method,
which makes it tremendously excellent in luminance, uniformity,
maintainability compared with the traditional LED dot-matrix
displays.
Wide application
Enterprise reception ,appliances stores, sports stores, exhibition
hall of fairs , cosmetics counters , shopping
mall. banking, financial securities, post office, ferry, shopping
malls, railway stations, telecommunications, government, offices,
monitoring, schools, restaurants, hotels, entertainment.
Service:
Pre-sales service :
Our team design and make solutions based on different requirements
from different customers, what you think is what we can do.
After-sales services:
1. We provide customer service through Skype, phone or email,
supply you video or drawing to solve problems.
2. We provide remote control service through internet to achieve
real time service, which will short time of solving problems.
3. We provide one professional engineer to one customer to keep
fastly reply.
Installation Service:
1. We provide detailed CAD drawing to customer for preparing metal
structure.
2. We could dispatch our engineer to your place , guide
installation and free training.
3. Special designs have special solutions; we will make perfect
solutions to satisfy all customers' requirements.
FAQ:
1 Q: What kind of sending/receiving cards are used?
A: Novastar/Colorlight/Linsn. Mostly use Novastar
2 Q: What technical supports can you offer?
A: We provide all kinds of technology trainings for free, including
the operation and maintenance training of the LED screens in our
factory. we can arrange an engineer team to the country of
customers to instruct the installation, it needs customers to pay
the relevant fees.
3 Q: Do you provide any free spare parts in each order?
A: Yes, a certain amount of spare parts will be provided for free,
spare parts including module, power cable,signal cable, LED lamp,
IC, mask, power supply, receiving card, etc.
4 Q: What’s your warranty of your products?
A:T he standard warranty is 3 year after shipment.
