P2 Flexible LED Display Screen

    Buy cheap P2 Flexible LED Display Screen from wholesalers

    Buy cheap P2 Flexible LED Display Screen from wholesalers
    • Buy cheap P2 Flexible LED Display Screen from wholesalers
    • Buy cheap P2 Flexible LED Display Screen from wholesalers

    P2 Flexible LED Display Screen

    Ask Lasest Price
    Brand Name : ledmanner
    Model Number : P2
    Certification : CE ROHS FCC
    Price : RMB3500-8000/㎡
    Payment Terms : T/T
    Supply Ability : 1000㎡/week
    Delivery Time : 20days
    • Product Details
    • Company Profile

    P2 Flexible LED Display Screen

    P2 Indoor Full Color Soft Customized SMD Flexible Led Display Screens


    Advantage:

    Flexible Led Display Screens is ultra-light weight, semi-transparent, rollable, LED video display suitable for both indoor and outdoor applications. It’s specially designed for both backdrop applications and creative LED designs. The soft LED screen is ultra-slim and ultra-lightweight, and increased design opportunities and lowered transportation costs. The soft LED screen adopts high quality LED and chip, the refresh frequency is super high as above 1000Hz, which ensures no flicker or black strip and no image distortion.


    Features:

    1. special design and advanced SMT technology improves the heat dissipation
    2. with high fresh rate controller, guarantee that no scan line when taking photos
    3. regular shape and special shape(such as curve,round) can be designed


    Specification:

    Modelflexible led display screens
    Pixel pitch (mm)2.0
    ConfigurationSMD1515
    Module dimension (mm)320 x160
    Module resolution(dots)160x 80
    Module weight(kg)0.28
    Pixel density(dots/㎡)250000
    Flatness error(mm)≤0.1
    Viewing angle(°)140/140(Horizontal/Vertical)
    Brightness(cd/㎡)<1000
    Brightness adjustment256 levels by software
    Contrast4000:1
    Repetition frequency(Hz)50/60
    Refresh frequency(Hz)≥600
    Gray scale(bit)14
    Ave. power(W/㎡)275
    Max power(W/㎡)550
    Working temp./humidity-20~45℃/10%~80%RH
    Storing temp./humidity-30~60℃/10%~85%RH
    Scanning1/10
    Power requirementsAC90~264V, 47~63Hz
    Signal Transmission Distance

    CAT cable:<100m;

    Single mode fiber:<10km

    Installation typeRental / Fix
    Life time(hrs)100,000
    Data inputRF,S-Video,RGB, RGBHV,YUV,YC,COMPOSITION etc.
    Module materialFlexible PCB + hard board(FPC+FR-4)
    CertificateCCC/TUV-CE/Rohs, etc.

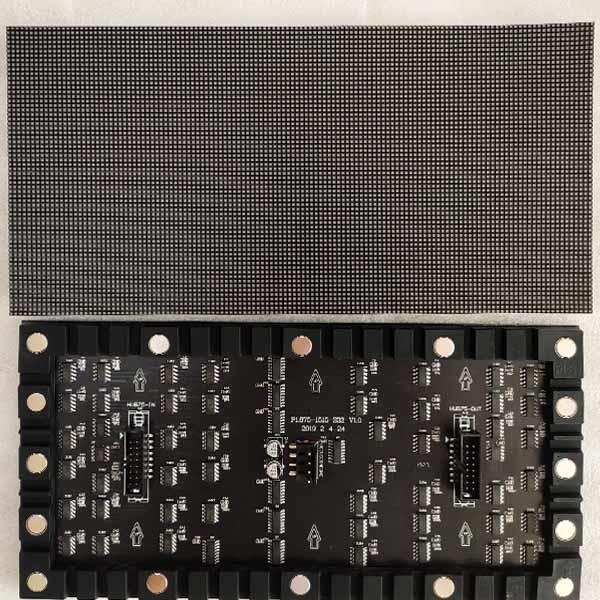

    Product Image:


    FAQ:

    Q1. Can I have a sample order for flexible led display screen?

    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


    Q2. What about the lead time?

    A: 3-5 days for Sample preparing ,8-10 working days for mass production.


    Q3. Do you have any MOQ limit for led light order?

    A: Low MOQ, 1pc for sample checking is available.


    Q4. How do you ship the goods and how long does it take to arrive?

    A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
